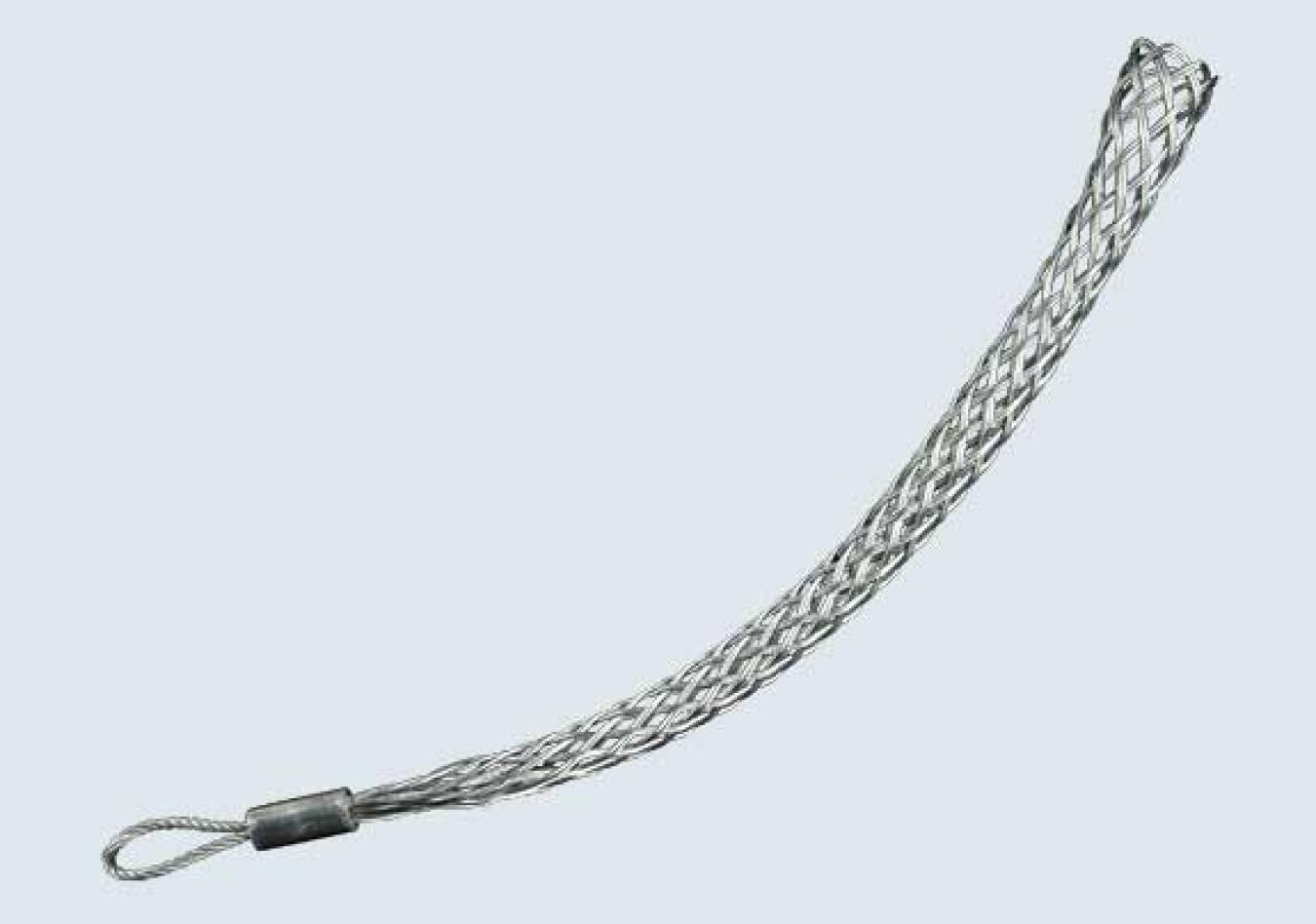

Flexible & Thimble Eye Cable Grips - Single Eye

Designed to fit the typical European range of cables, and with a longer lattice length, these grips are ideal for pulling medium to heavy loads. Made of galvanised steel.

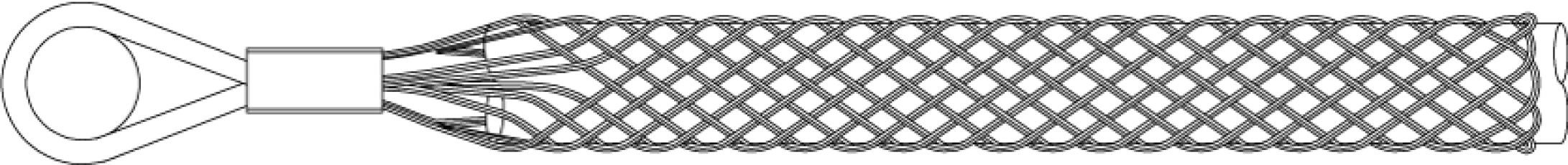

This grip has a flexible eye construction – and is also available with a reinforced thimble eye.

Warning

Cancer and Reproductive Harm www.P65Warnings.ca.gov

Contact Slingco

Features

Specifically designed for metric sized cable
Available with soft or reinforced eye
Longer lattice length

Metric
Flexible Eye	Thimble Eye	Type	Range (mm)	Lattice Length (mm)	Overall Length (mm)	Approx. Break Load (kg)
ZCS0824	ZCS3133	Single	15 - 20	1,220	1,358	1,240
ZCS0825	ZCS3134	Single	20 - 30	1,250	1,358	1,530
ZCS0826	ZCS3135	Double	20 - 30	1,250	1,393	1,990
ZCS0827	ZCS3136	Single	30 - 40	1,250	1,393	2,550
ZCS0828	ZCS3137	Double	30 - 40	1,250	1,652	3,060
ZCS0829	ZCS3138	Double	40 -50	1,500	1,661	5,930
ZCS0830	ZCS3139	Double	50 - 60	1,500	1,750	6,630
ZCS0831	ZCS3140	Double	60 - 70	1,500	1,750	7,790
ZCS0832	ZCS3141	Double	70 - 90	1,500	1,750	8,110
ZCS0833	ZCS3142	Double	90 - 110	1,500	1,750	11,830
ZCS0834	ZCS3143	Double	110 - 130	1,500	1,750	11,830
ZCS0835	ZCS3144	Double	120 - 150	1,500	1,750	12,750
ZCS0836	ZCS3145	Double	140 - 180	1,500	1,750	12,750

A note about dimensions and tolerances

Imperial
Flexible Eye	Thimble Eye	Type	Range (in)	Lattice Length (in)	Overall Length (in)	Approx. Break Load (lb)
ZCS0824	ZCS3133	Single	0.59 – 0.79	48	53.5	2,730
ZCS0825	ZCS3134	Single	0.79 – 1.18	49	53.5	3,370
ZCS0826	ZCS3135	Double	0.79 – 1.18	49	55	4,380
ZCS0827	ZCS3136	Single	1.18 – 1.57	49	55	5,620
ZCS0828	ZCS3137	Double	1.18 – 1.57	49	65	6,740
ZCS0829	ZCS3138	Double	1.57 – 2.00	59	65.5	13,060
ZCS0830	ZCS3139	Double	1.97 – 2.36	59	69	14,610
ZCS0831	ZCS3140	Double	2.36 – 2.76	59	69	17,160
ZCS0832	ZCS3141	Double	2.76 – 3.54	59	69	17,870
ZCS0833	ZCS3142	Double	3.54 - 4.33	59	69	26,070
ZCS0834	ZCS3143	Double	4.33 – 5.12	59	69	26,070
ZCS0835	ZCS3144	Double	4.72 – 5.91	59	69	28,100
ZCS0836	ZCS3145	Double	5.51 – 7.09	59	69	28,100
