Line Pulling Swivels - Bull Nose

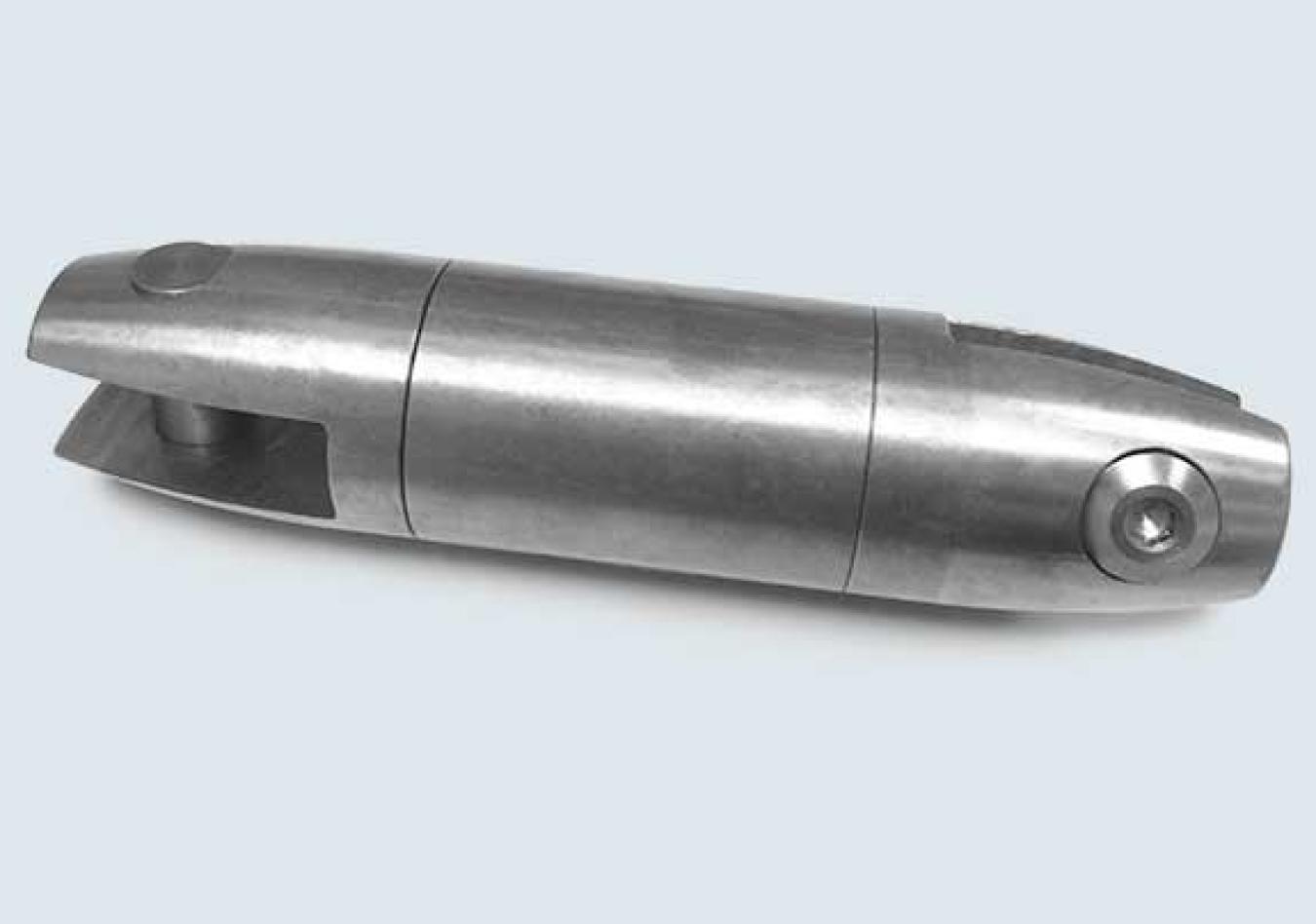

Slingco's ‘bull nose’ style swivel is designed for underground and overhead applications.

Swivels designed for use in stringing high tension wires for electrical transmission and distribution. Swivels are important in pulling when the lines develop torsion during the installation. This torsion must be released. Use of a swivel will release torque and prevent it from reaching dangerous levels, which can cause damage to the cable or grip.

All swivels are stringently quality tested and inspected to ensure optimum performance and reliability.

Warning

Cancer and Reproductive Harm www.P65Warnings.ca.gov

Contact Slingco

Features

Releases torsion
Prevents damage to cable or grip
Suitable for underground or overhead applications
Straight line pulling only

Metric

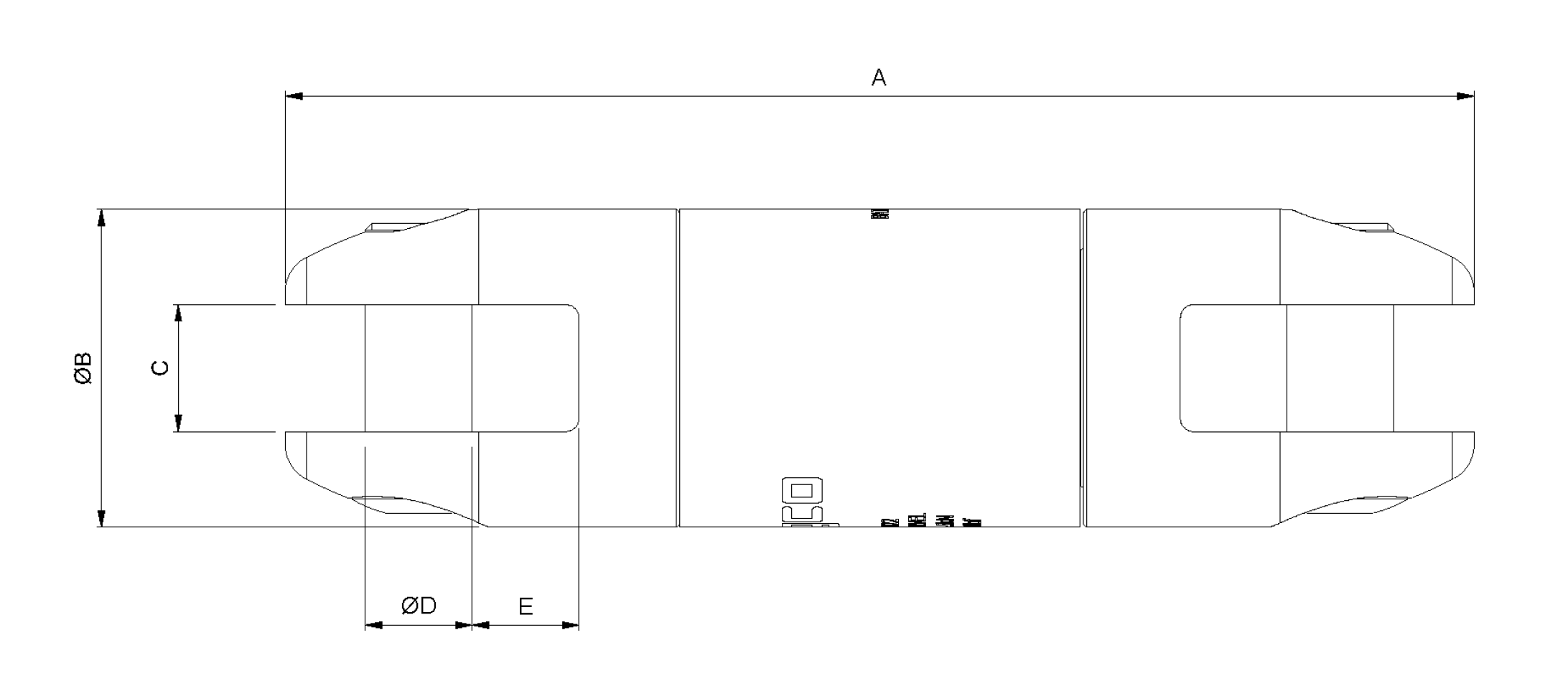

Slingco Part No.	Safe Working Load - 3:1 (kN)	Safe Working Load - 5:1 (kN)	A Length (mm)	Ø B (mm)	C (mm)	Ø D Pin (mm)	E Recess (mm)	Weight (kg)
ZSW2649	17.8	10.6	120.5	32	15.5	13.3	9.5	0.46
ZSW2929	35.5	21.3	136.6	38	16	15.5	11	0.80
ZSW6122	44.5	26.7	178	47.6	19.05	16	16	1.69
ZSW6123	71.2	42.7	259	62	25.4	28.5	22	4.17
ZSW2857	134	80	282.6	63.5	25.4	28.62	22	4.74

3:1 factor of safety and 5:1 factor of safety provided for reference only

A note about dimensions and tolerances

Imperial
Slingco Part No.	Safe Working Load - 3:1 (lb)	Safe Working Load - 5:1 (lb)	A Length (in)	Ø B (in)	C (in)	Ø D Pin (in)	E Recess (in)	Weight (lb)
ZSW2649	4,000	2400	4.74	1.26	0.61	0.37	0.37	1.01
ZSW2929	8,000	4,800	5.38	1.5	0.63	0.61	0.43	1.75
ZSW6122	10,000	6,000	7	1.87	0.75	0.63	0.63	3.72
ZSW6123	16,000	9,600	10.2	2.44	1	1.12	0.87	9.19
ZSW2857	30,000	18,000	11.13	2.5	1	1.13	0.87	10.44

3:1 factor of safety and 5:1 factor of safety provided for reference only

A note about dimensions and tolerances

Swivel and Cable Grip match-up - Metric
Flexible Eye MU	Revolving Eye	Approx. breaking strength of cable grip (kN)	Cable grip colour code	Size range O.D. (mm)	Recommended swivel	Safe working load of swivel at 3:1 (kN)
ZCS1710	ZCS2177	31.1	Dark green	06-Dec	ZSW2649	17.8
ZCS1711	ZCS2178	46.7	Brown	Dec-19	ZSW2929	22.2
ZCS1712	ZCS2179	62.7	Light blue	19 - 25	ZSW2929	22.2
ZCS1713	ZCS2180	111.2	Gold	25 - 32	ZSW6122	44.5
ZCS1714	ZCS2181	137.9	Black	32 - 38	ZSW6122	44.5
ZCS1715	ZSC2182	137.9	Red	38 - 44	ZSW6122	44.5
ZCS1716†	ZSC2183*	191.3 - 218	Dark blue	44 - 57	ZSW6123	71.2

The above is intended as a rough guide. The recommended working load should be determined by the competent person(s) using the cable grip and/or Slingco swivel.

A note about dimensions and tolerances

Swivel and Cable Grip match-up - Imperial
Flexible Eye MU	Revolving Eye	Approx. breaking strength of cable grip (lb)	Cable grip colour code	Size range O.D. (in)	Recommended swivel	Safe working load of swivel at 3:1 (lb)
ZCS1710	ZCS2177	7,000	Dark green	0.25 - 0.50	ZSW2649	4,000
ZCS1711	ZCS2178	10,500	Brown	0.50 - 0.75	ZSW2929	5,000
ZCS1712	ZCS2179	14,100	Light blue	0.75 - 1.00	ZSW2929	5,000
ZCS1713	ZCS2180	25,000	Gold	1.00 - 1.25	ZSW6122	10,000
ZCS1714	ZCS2181	31,000	Black	1.25 - 1.50	ZSW6122	10,000
ZCS1715	ZSC2182	31,000	Red	1.50 - 1.75	ZSW6122	10,000
ZCS1716†	ZSC2183*	43,000*-49,000†	Dark blue	1.75 - 2.25	ZSW6123	16,000

The above is intended as a rough guide. The recommended working load should be determined by the competent person(s) using the cable grip and/or Slingco swivel.

A note about dimensions and tolerances
