Line Pulling Swivels - Standard End

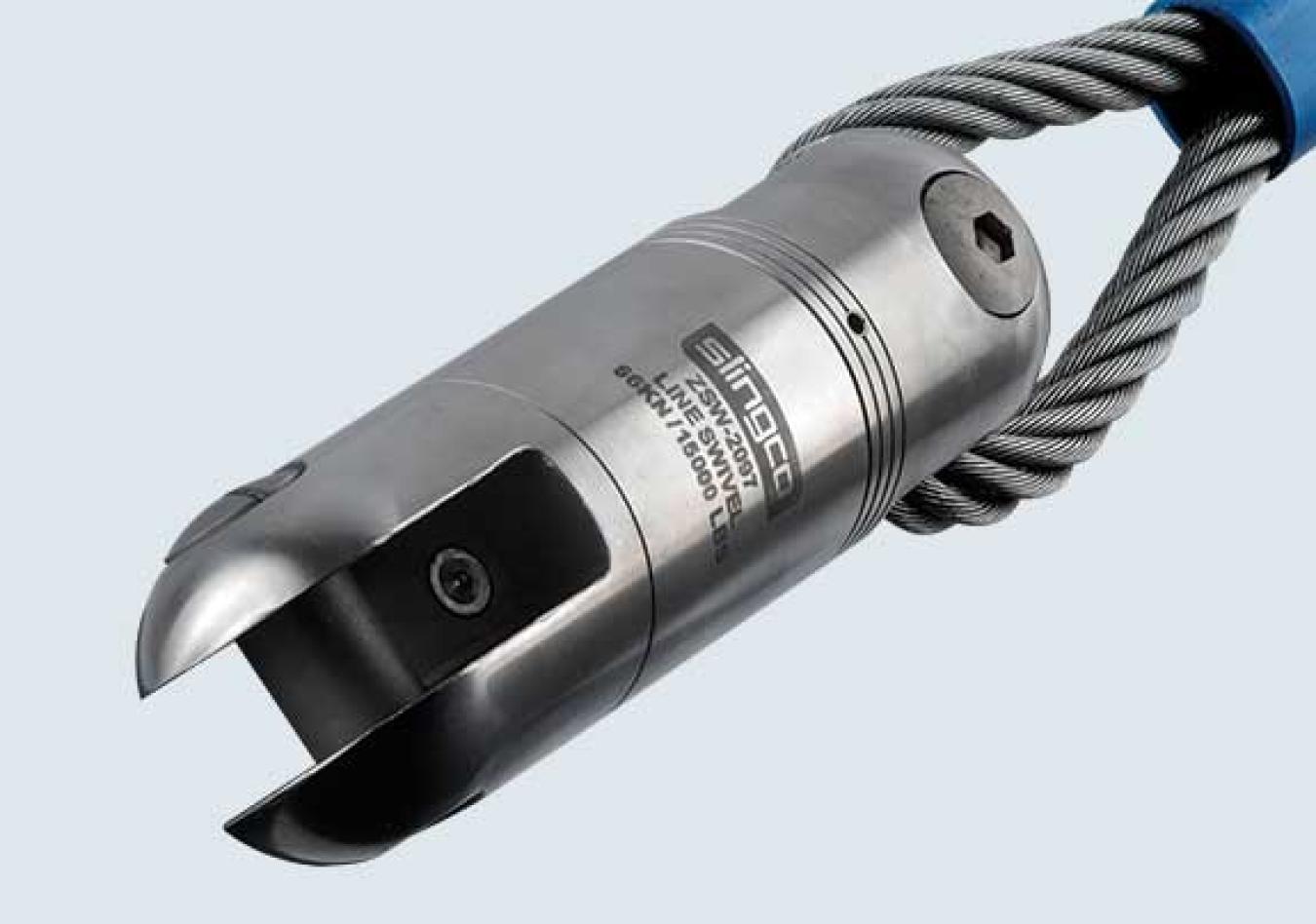

Swivels designed for use in stringing high tension wires for electrical transmission and distribution. Swivels are important in pulling when the lines develop torsion during the installation. This torsion must be released. Use of a swivel will release torque and prevent it from reaching dangerous levels, which can cause damage to the cable or grip.

Slingco also offers a ‘bull nose’ style swivel designed for underground and overhead applications.

All swivels are stringently quality tested and inspected to ensure optimum performance and reliability.

Warning

Cancer and Reproductive Harm www.P65Warnings.ca.gov

Contact Slingco

Features

Releases torsion
Prevents damage to cable or grip
Suitable for underground or overhead applications
Straight line pulling only

Metric

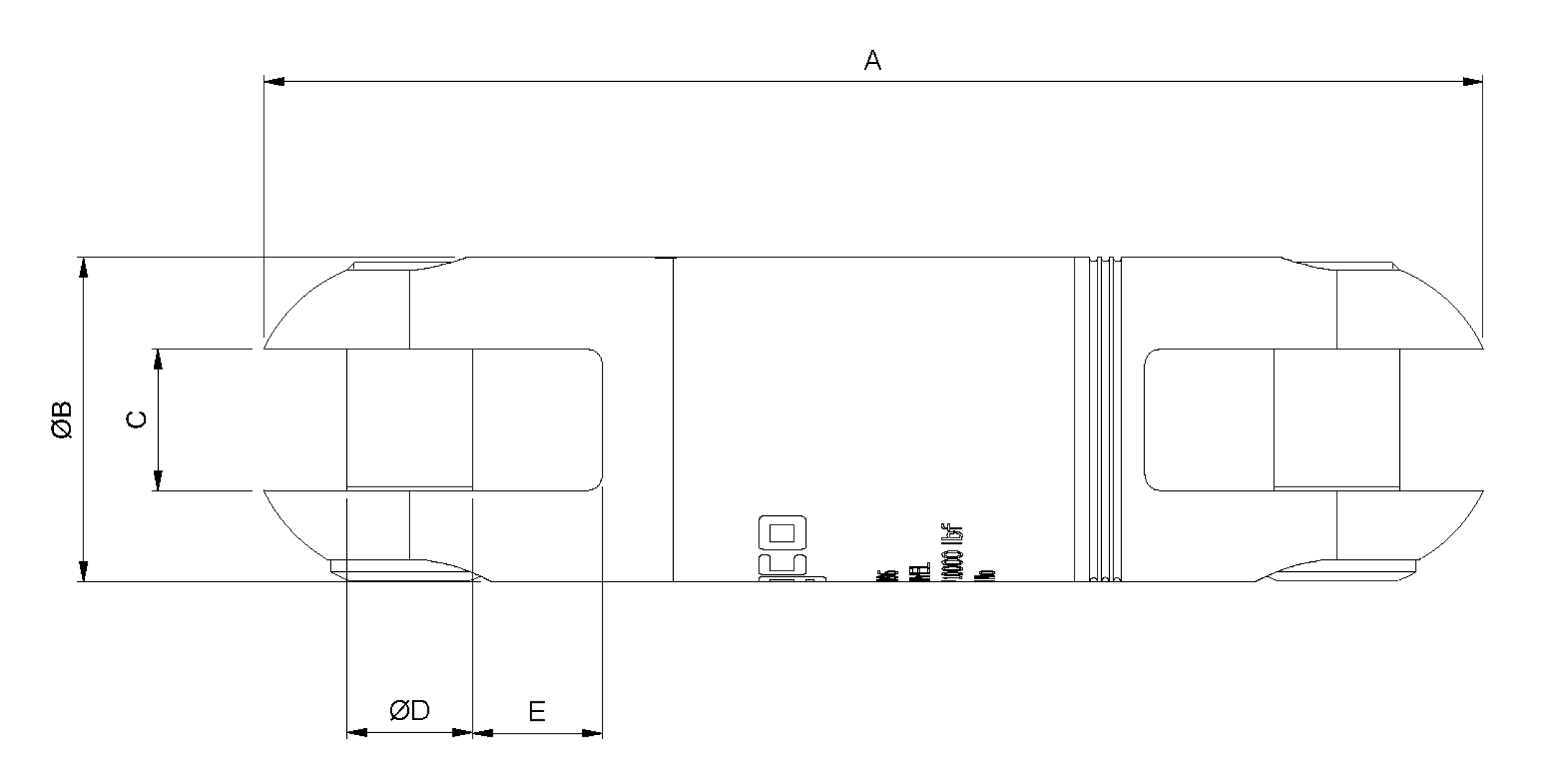

Slingco Part No.	Safe Working Load - 3:1 (kN)	Safe Working Load - 5:1 (kN)	A Length (mm)	Ø B (mm)	C (mm)	Ø D Pin (mm)	E Recess (mm)	Weight (kg)	Safe Working Load - 3:1 FOS (lb)	Safe Working Load - 5:1 FOS (lb)
ZSW2091	10	6	85.6	22	10	8	10	0.19	2,250	1,350
ZSW2092	15.5	9.3	101.1	25	11	10	11	0.25	3,500	2,100
ZSW2093	22	13.2	126	32	14	10	14	0.51	5,000	3,000
ZSW2094	31.1	18.7	132.7	35	14	12.5	13.8	0.65	7,000	4,200
ZSW2096	44.5	26.7	155.1	41.25	18	16	16.5	1.07	10,000	6,000
ZSW2097	66	39.6	186.4	53	20	18	21	2.08	15,000	9,000

3:1 factor of safety used, based on the ultimate load for underground use

5:1 factor of safety used, based on the ultimate load for overhead use

3:1 factor of safety and 5:1 factor of safety provided for reference only

A note about dimensions and tolerances

Imperial
Slingco Part No.	Safe Working Load - 3:1 (kN)	Safe Working Load - 5:1 (kN)	A Length (in)	Ø B (in)	C (in)	Ø D Pin (in)	E Recess (in)	Weight (lb)	Safe Working Load - 3:1 FOS (lb)	Safe Working Load - 5:1 FOS (lb)
ZSW2091	10	6	3.39	0.87	0.39	0.31	0.39	0.43	2,250	1,350
ZSW2092	15.5	9.3	3.98	0.98	0.43	0.39	0.43	0.56	3,500	2,100
ZSW2093	22	13.2	4.96	1.26	0.55	0.39	0.55	1.13	5,000	3,000
ZSW2094	31.1	18.7	5.22	1.38	0.55	0.5	0.54	1.44	7,000	4,200
ZSW2096	44.5	26.7	6.1	1.62	0.71	0.63	0.65	2.35	10,000	6,000
ZSW2097	66	39.6	7.34	2.09	0.79	0.71	0.83	4.59	15,000	9,000

3:1 factor of safety used, based on the ultimate load for underground use

5:1 factor of safety used, based on the ultimate load for overhead use

3:1 factor of safety and 5:1 factor of safety provided for reference only

A note about dimensions and tolerances

Swivel and Cable Grip match-up - Metric
Flexible Eye MU	Revolving Eye	Approx. breaking strength of cable grip (kN)	Cable grip colour code"	Size range O.D. (mm)	Recommended swivel	Safe working load of swivel at 3:1 (kN)
ZCS1710	ZCS2177	31.1	Dark green	6 - 12	ZSW2092	15.6
ZCS1711	ZCS2178	46.7	Brown	12 - 19	ZSW2093	22.2
ZCS1712	ZCS2179	62.7	Light blue	19 - 25	ZSW2093	22.2
ZCS1713	ZCS2180	111.2	Gold	25 - 32	ZSW2096	44.5
ZCS1714	ZCS2181	137.9	Black	32 - 38	ZSW2096	44.5
ZCS1715	ZCS2182	137.9	Red	38 - 44	ZSW2096	44.5
ZCS1716†	ZSC2183*	191.3 - 218	Dark blue	44 - 57	ZSW2097	66.7

The above is intended as a rough guide. The recommended working load should be determined by the competent person(s) using the cable grip and/or Slingco swivel.
