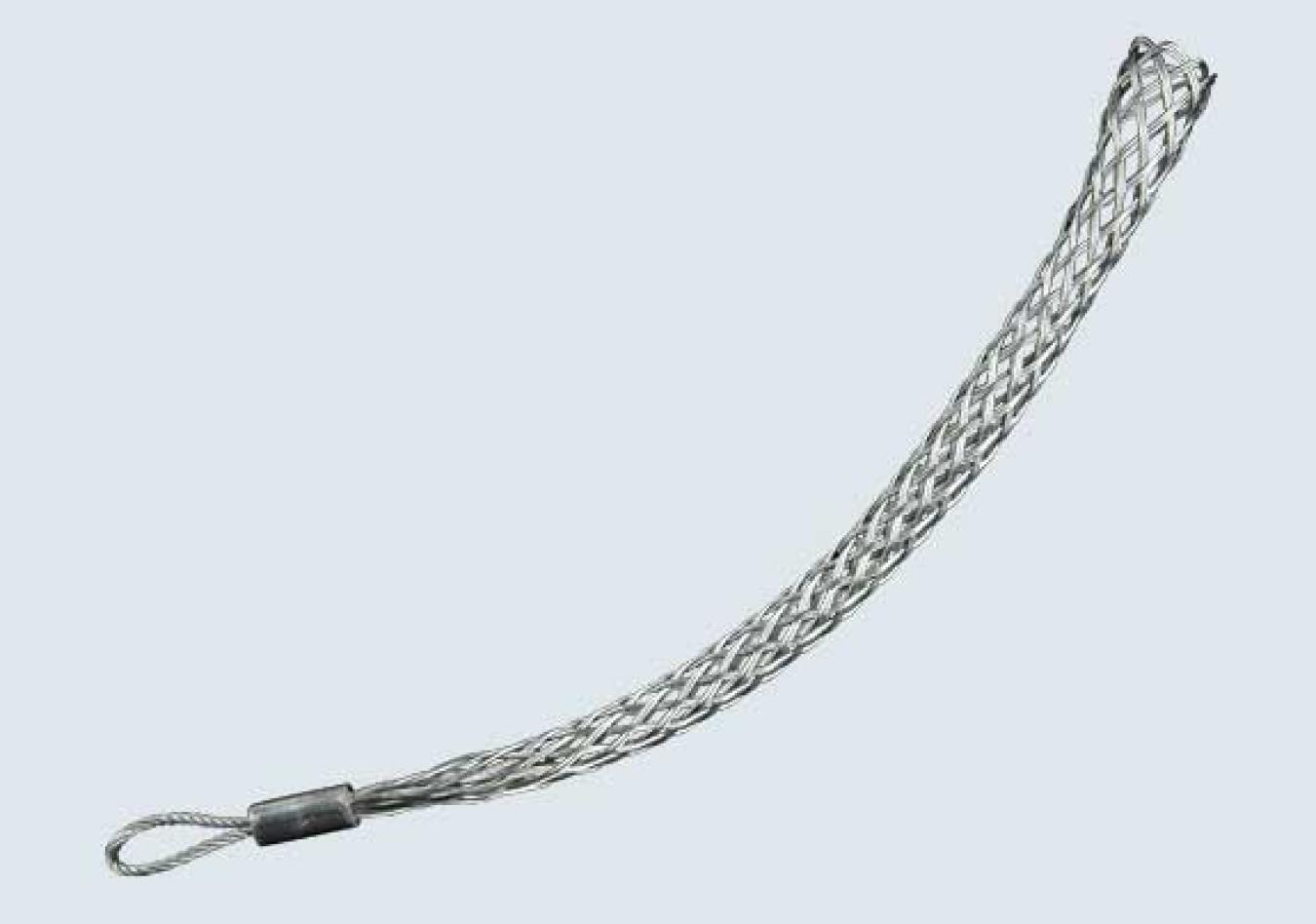

SE Type

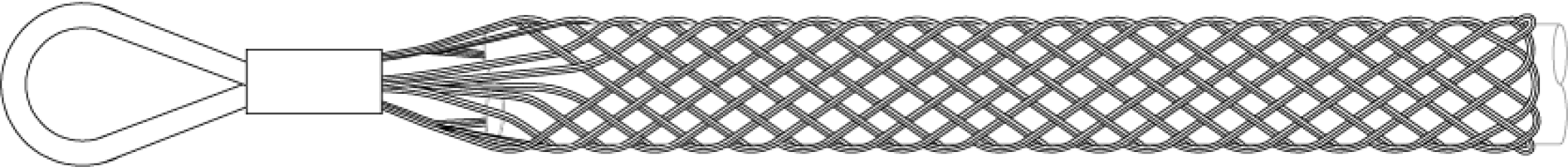

SE Type

Ideal for pulling light to medium loads; typical application- 'standard pull' of single or group of cables, where additional support is unnecessary, or if used in conjunction with other cable grips

Download info sheet

Warning

Cancer and Reproductive Harm www.P65Warnings.ca.gov

Contact Slingco

SE Type

Features

Available in galvanised steel or stainless steel
Suitable for underground installations
Fits easily onto electrical cables

Single Eye Standard Grip - Galvanized

Metric — Single Eye Standard Grip - Galvanized
Slingco Part No.	Range (mm)	Lattice Weave	Lattice Length (mm)	Overall Length (mm)	Approx. Break Load (kg)
ZCS0320	6 - 13	Single	230	305	760
ZCS0321	13 - 19	Single	355	430	1,015
ZCS0322	19 - 25	Single	405	510	2,540
ZCS0323	25 - 38	Single	455	610	3,555
ZCS0324	38 - 50	Double	535	735	3,992
ZCS0325	50 - 63	Double	610	865	5,080
ZCS0326	63 - 89	Double	685	990	6,095
ZCS0327	89 - 115	Double	685	990	7,110
ZCS0821	115 - 140	Double	685	990	7,110
ZCS3574	135 - 160	Single	900	1,380	20,000
ZCS3575	160 - 190	Single	1,500	2,000	20,000
ZCS3576	190 - 220	Single	1,500	2,000	20,000
ZCS3577	220 - 250	Single	1,500	2,000	20,000
ZCS3578	250 - 300	Single	2,000	2,600	20,000

Single Eye Standard Grip - 316 Stainless Steel

Metric — Single Eye Standard Grip - 316 Stainless Steel
Slingco Part No.	Range (mm)	Lattice Weave	Lattice Length (mm)	Overall Length (mm)	Approx. Break Load (kg)
ZCS1380	6 - 13	Single	230	305	610
ZCS1523	13 - 19	Single	355	430	810
ZCS1373	19 - 25	Single	405	510	2,030
ZCS1952	25 - 38	Single	455	610	2,845
ZCS1381	38 - 50	Double	535	735	4,065
ZCS1977	50 - 63	Double	610	865	4,065
ZCS1979	63 - 89	Double	685	990	4,875
ZCS1980	89 - 115	Double	685	990	5,690
ZCS1981	115 - 140	Double	685	990	5,690

A note about dimensions and tolerances

Single Eye Standard Grip - Galvanized

Imperial — Single Eye Standard Grip - Galvanized
Slingco Part No.	Range (in)	Lattice Weave	Lattice Length (in)	Overall Length (in)	Approx. Break Load (lb)
ZCS0320	0.25 - 0.50	Single	9	12	1,680
ZCS0321	0.50 - 0.75	Single	14	17	2,240
ZCS0322	0.75 - 1.00	Single	16	20	5,600
ZCS0323	1.00 - 1.50	Single	18	24	7,840
ZCS0324	1.50 - 2.00	Double	21	29	8,800
ZCS0325	2.00 - 2.50	Double	24	34	11,200
ZCS0326	2.50 - 3.50	Double	27	39	13,440
ZCS0327	3.50 - 4.50	Double	27	39	15,680
ZCS0821	4.50 - 5.50	Double	27	39	15,680
ZCS3574	5.31 - 6.30	Double	36.9	49.8	44,000
ZCS3575	6.3 - 7.48	Double	57.2	78.7	44,000
ZCS3576	7.48 - 8.66	Double	61.9	81.6	44,000
ZCS3577	8.66 - 9.84	Double	59.7	72.7	44,000
ZCS3578	9.84 - 11.81	Single	80.0	93.3	44,000

Single Eye Standard Grip - 316 Stainless Steel

Imperial — Single Eye Standard Grip - 316 Stainless Steel
Slingco Part No.	Range (in)	Lattice Weave	Lattice Length (in)	Overall Length (in)	Approx. Break Load (lb)
ZCS1380	0.25 - 0.50	Single	9	12	1,344
ZCS1523	0.50 - 0.75	Single	14	17	1,792
ZCS1373	0.75 - 1.00	Single	16	20	4,480
ZCS1952	1.00 - 1.50	Single	18	24	6,272
ZCS1381	1.50 - 2.00	Double	21	29	8,960
ZCS1977	2.00 - 2.50	Double	24	34	8,960
ZCS1979	2.50 - 3.50	Double	27	39	10,752
ZCS1980	3.50 - 4.50	Double	27	39	12,544
ZCS1981	4.50 - 5.50	Double	27	39	12,544

A note about dimensions and tolerances
