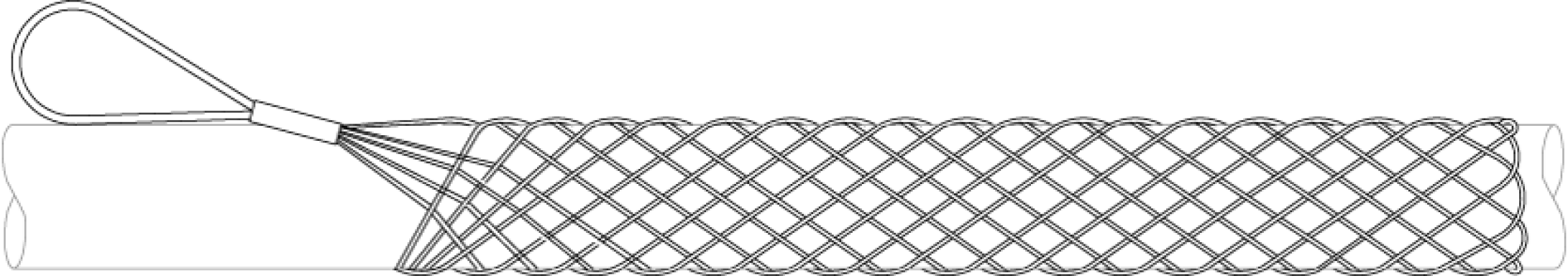

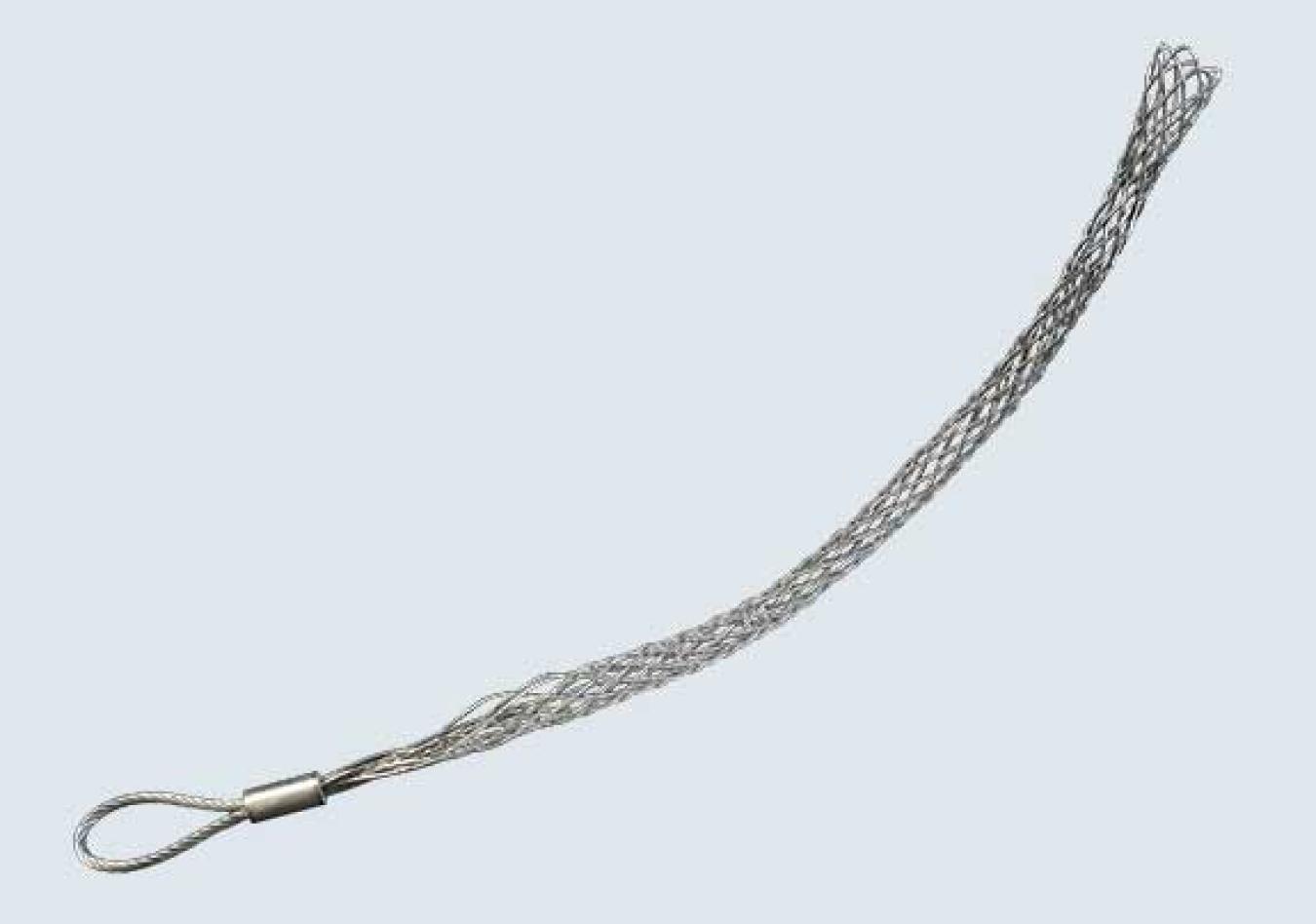

OS Type

Similar to the SE Type single eye cable grip, but for when offset positioning is required. Excellent for pulling slack out of lines that have been pulled. May also be used for removing underground cables when end of cable is available.

Warning

Cancer and Reproductive Harm www.P65Warnings.ca.gov

Contact Slingco

Features

Available in galvanised steel or stainless steel
Suitable for underground installations
Fits easily onto electrical cables

Offset Eye Standard Grip - Galvanised

Metric — Offset Eye Standard Grip - Galvanised
Slingco Part No.	Range (mm)	Lattice Weave	Lattice Length (mm)	Overall Length (mm)	Approx. Break Load (kg)
ZCS1860	6 - 13	Single	230	305	760
ZCS1861	13 - 19	Single	355	430	1,015
ZCS1862	19 - 25	Single	405	510	2,540
ZCS1863	25 - 38	Single	455	610	3,555
ZCS1864	38 - 50	Double	535	735	5,080
ZCS1865	50 - 63	Double	610	865	5,080
ZCS1866	63 - 89	Double	685	990	6,095
ZCS1867	89 - 115	Double	685	990	7,110
ZCS1974	115 - 140	Double	685	990	7,110

Offset Eye Standard Grip - 316 Stainless Steel

Metric — Offset Eye Standard Grip - 316 Stainless Steel
Slingco Part No.	Range (mm)	Lattice Weave	Lattice Length (mm)	Overall Length (mm)	Approx. Break Load (kg)
ZCS1986	6 - 13	Single	230	305	610
ZCS1987	13 - 19	Single	355	430	810
ZCS1988	19 - 25	Single	405	510	2,030
ZCS1989	25 - 38	Single	450	700	2,845
ZCS1990	38 - 50	Double	535	735	4,065
ZCS1991	50 - 63	Double	610	865	4,065
ZCS1992	63 - 89	Double	685	990	4,875
ZCS1993	89 - 115	Double	685	990	5,690
ZCS1994	115 - 140	Double	685	990	5,690
ZCS3994	140 - 180	Double	596	976	2,041
ZCS4069	203 - 229	Double	1,500	1,880	8,928

A note about dimensions and tolerances

Offset Eye Standard Grip - Galvanised

Imperial — Offset Eye Standard Grip - Galvanised
Slingco Part No.	Range (in)	Lattice Weave	Lattice Length (in)	Overall Length (in)	Approx. Break Load (lb)
ZCS1860	0.25 - 0.50	Single	9	12	1,680
ZCS1861	0.50 - 0.75	Single	14	17	2,240
ZCS1862	0.75 - 1.00	Single	16	20	5,600
ZCS1863	1.00 - 1.50	Single	18	24	7,837
ZCS1864	1.50 - 2.00	Double	21	29	11,200
ZCS1865	2.00 - 2.50	Double	24	34	11,200
ZCS1866	2.50 - 3.50	Double	27	39	13,440
ZCS1867	3.50 - 4.50	Double	27	39	15,680
ZCS1974	4.50 - 5.50	Double	27	39	15,680

Offset Eye Standard Grip - 316 Stainless Steel

Imperial — Offset Eye Standard Grip - 316 Stainless Steel
Slingco Part No.	Range (in)	Lattice Weave	Lattice Length (in)	Overall Length (in)	Approx. Break Load (lb)
ZCS1986	0.25 - 0.50	Single	9	12	1,344
ZCS1987	0.50 - 0.75	Single	14	17	1,792
ZCS1988	0.75 - 1.00	Single	16	20	4,480
ZCS1989	1.00 - 1.50	Single	17.75	27.50	6,272
ZCS1990	1.50 - 2.00	Double	21	29	8,960
ZCS1991	2.00 - 2.50	Double	24	34	8,960
ZCS1992	2.50 - 3.50	Double	27	39	10,752
ZCS1993	3.50 - 4.50	Double	27	39	12,544
ZCS1994	4.50 - 5.50	Double	27	39	12,544
ZCS3994		Double
ZCS4069	8.0 - 9.0	Double	59	74	20,000
