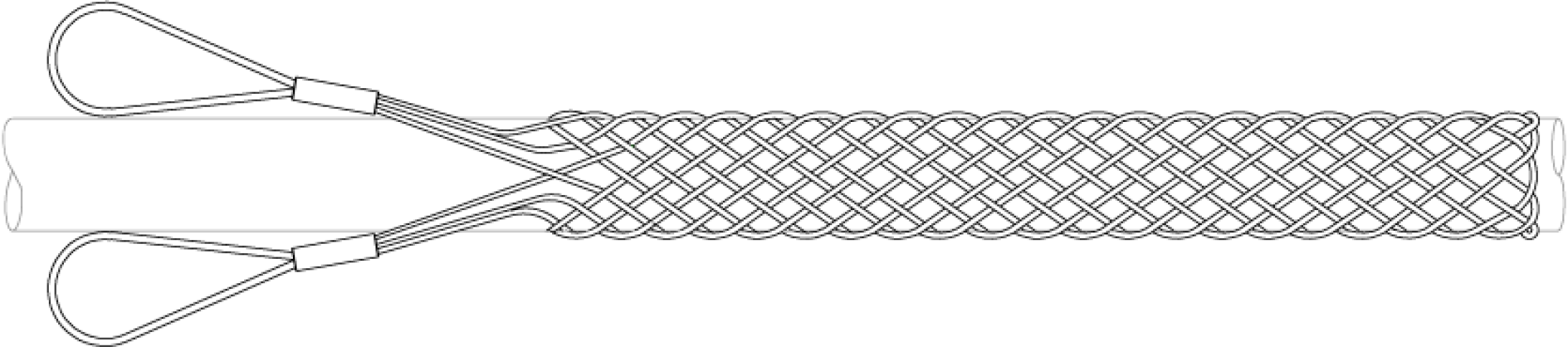

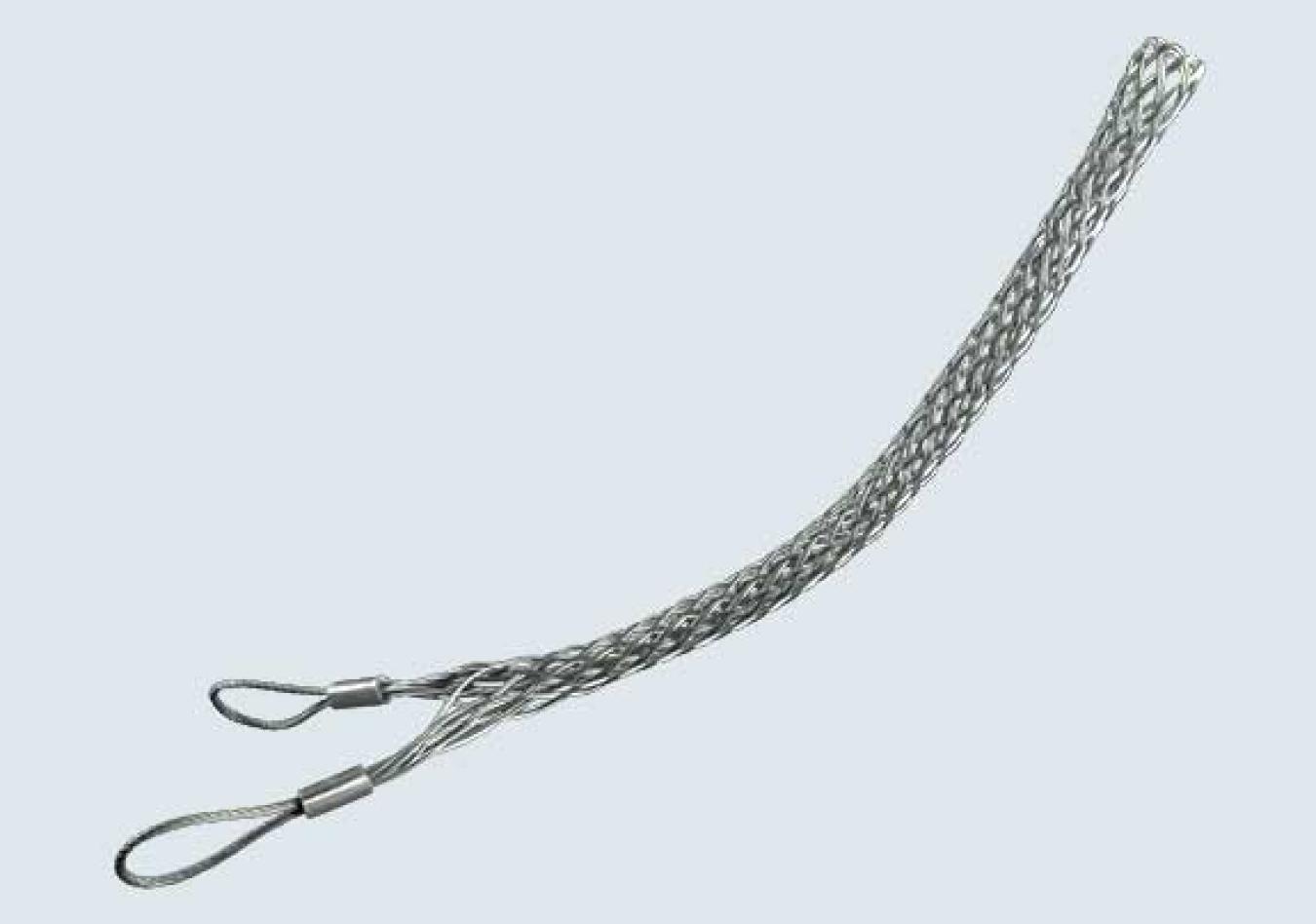

DE Type

Ideal for pulling light to medium loads; the main advantage over the single eye cable grip is the cable being pulled can be passed through the grip, several cable grips can be used to support over a calculated distance.

Warning

Cancer and Reproductive Harm www.P65Warnings.ca.gov

Contact Slingco

Features

Available in galvanised steel or stainless steel
Suitable for underground installations
Fits easily onto electrical cables

Double Eye Standard Grip - Galvanised

Metric — Double Eye Standard Grip - Galvanised
Slingco Part No.	Range (mm)	Lattice Length (mm)	Lattice Weave	Overall Length (mm)	Approx. Break Load (kg)
ZCS0305	6 - 13	230	Single	305	760
ZCS0306	13 - 19	355	Single	430	1,015
ZCS0307	19 - 25	405	Single	510	2,540
ZCS0308	25 - 38	455	Single	610	3,555
ZCS0309	38 - 50	535	Double	735	5,080
ZCS0310	50 - 63	610	Double	865	5,080
ZCS0311	63 - 89	685	Double	990	6,095
ZCS0312	89 - 115	685	Double	990	7,110
ZCS0878	115 - 140	685	Double	990	7,110
ZCS3579	135 - 160	1,000	Double	1,600	20,000
ZCS3580	161 - 190	1,500	Double	2,100	27,000
ZCS3581	191 - 220	1,500	Double	2,100	27,000
ZCS3582	221 - 250	1,500	Double	2,100	27,000

Double Eye Standard Grip - 316 Stainless Steel

Metric — Double Eye Standard Grip - 316 Stainless Steel
Slingco Part No.	Range (mm)	Lattice Length (mm)	Lattice Weave	Overall Length (mm)	Approx. Break Load (kg)
ZCS0823	6 - 13	230	Single	305	610
ZCS1007	13 - 19	355	Single	430	810
ZCS0931	19 - 25	405	Single	510	2,030
ZCS1265	25 - 38	455	Single	610	2,845
ZCS3995	29 - 40	1,270	Double	1,575	15,625
ZCS1252	38 - 50	535	Double	735	4,065
ZCS0319	50 - 63	610	Double	865	4,065
ZCS0213	63 - 89	685	Double	990	4,875
ZCS4873	63 - 89	1,778	Double	2,032	6,027
ZCS4596	63 - 89	1,422	Triple	3,860	7,204
ZCS0332	89 - 115	685	Double	990	5,690
ZCS1982	115 - 140	685	Double	990	5,690
ZCS4869	115 - 140	1,778	Double	2,032	6,027

A note about dimensions and tolerances

Double Eye Standard Grip - Galvanised

Imperial — Double Eye Standard Grip - Galvanised
Slingco Part No.	Range (in)	Lattice Length (in)	Lattice Weave	Overall Length (in)	Approx. Break Load (lb)
ZCS0305	0.25 - 0.50	9	Single	12	1,680
ZCS0306	0.50 - 0.75	14	Single	17	2,240
ZCS0307	0.75 - 1.00	16	Single	20	5,600
ZCS0308	1.00 - 1.50	18	Single	24	7,840
ZCS0309	1.50 - 2.00	21	Double	29	11,200
ZCS0310	2.00 - 2.50	24	Double	34	11,200
ZCS0311	2.50 - 3.50	27	Double	39	13,440
ZCS0312	3.50 - 4.50	27	Double	39	15,680
ZCS0878	4.50 - 5.50	27	Double	39	15,680
ZCS3579	5.31 - 6.30	39.37	Double	63	44,800
ZCS3580	6.33 - 7.48	59.05	Double	82.67	60,480
ZCS3581	7.51 - 8.66	59.05	Double	82.67	60,480
ZCS3582	8.70 - 9.84	59.05	Double	82.67	60,480

Double Eye Standard Grip - 316 Stainless Steel

Imperial — Double Eye Standard Grip - 316 Stainless Steel
Slingco Part No.	Range (in)	Lattice Length (in)	Lattice Weave	Overall Length (in)	Approx. Break Load (lb)
ZCS0823	0.25 - 0.50	9	Single	12	1,344
ZCS1007	0.50 - 0.75	14	Single	17	1,792
ZCS0931	0.75 - 1.00	16	Single	20	4,480
ZCS1265	1.00 - 1.50	18	Single	24	6,272
ZCS3995	1.14 - 1.57	50	Double	62	35,000
ZCS1252	1.50 - 2.00	21	Double	29	8,960
ZCS0319	2.00 - 2.50	24	Double	34	8,960
ZCS0213	2.50 - 3.50	27	Double	39	10,752
ZCS4873	2.50 - 3.50	70	Double	80	13,500
ZCS4596	2.50 - 3.50	56	Triple	152	16,138
ZCS0332	3.50 - 4.50	27	Double	39	12,544
ZCS1982	4.50 - 5.50	27	Double	39	12,544
ZCS4869	4.50 - 5.50	70	Double	80	13,500
