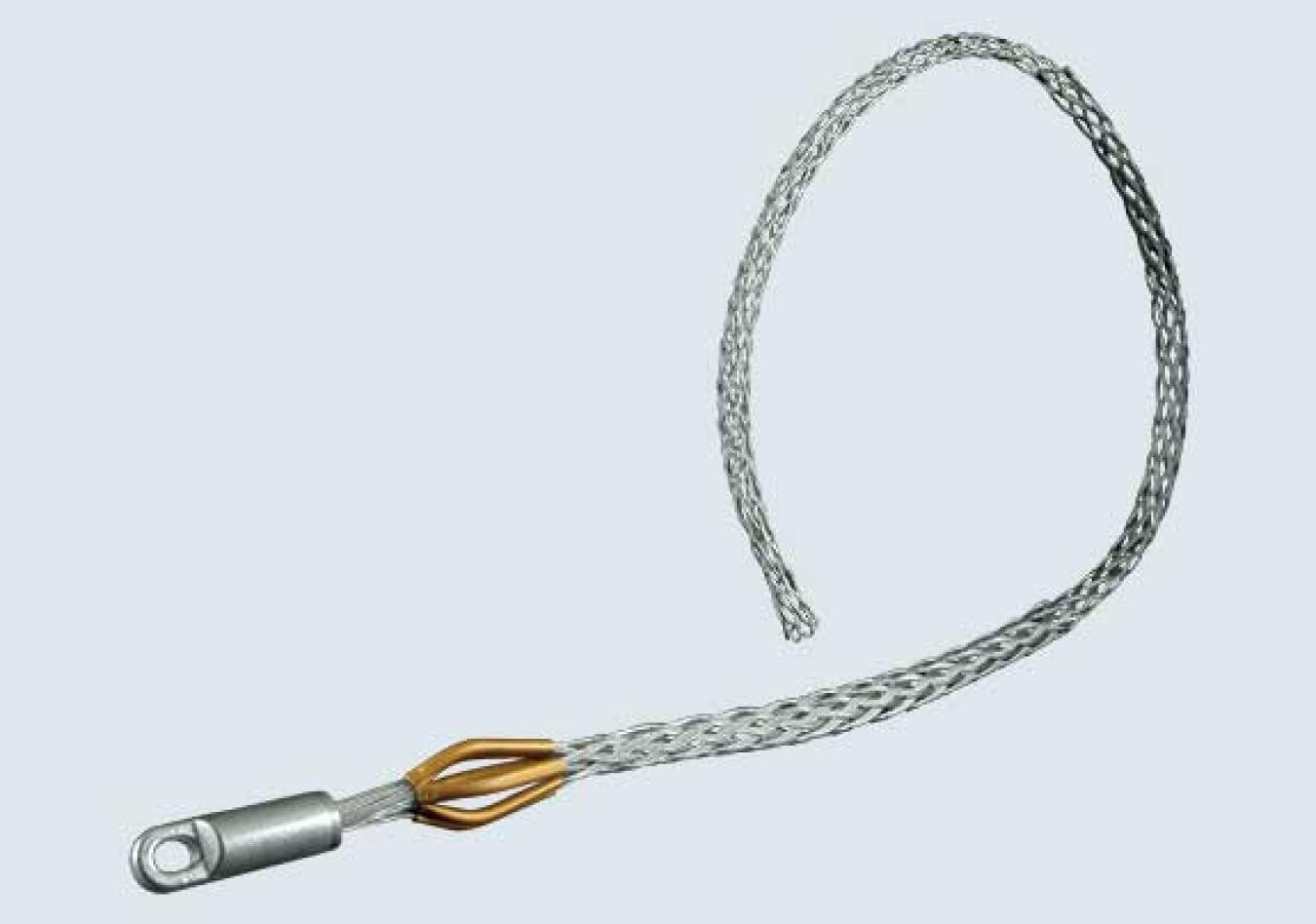

R Type - Rotating Multi-Weave Cable Grips

Like the MU type, the rotating eye grip has a multi-weave construction (triple, double, single) and is colour coded for ease of identification. The steel forged revolving head is ideal for connecting to Slingco swivels. Warning: The Slingco rotating eye does not revolve under load and does not replace the use of a line swivel. Recommended for undergound pulls. Made of galvanised steel.

Warning

Cancer and Reproductive Harm www.P65Warnings.ca.gov

Contact Slingco

Features

Steel forged revolving head ideal for connecting to Slingco swivels
Triple weave construction
Used for heavy duty pulling
Suitable for bare or insulated cable, conductor or wire

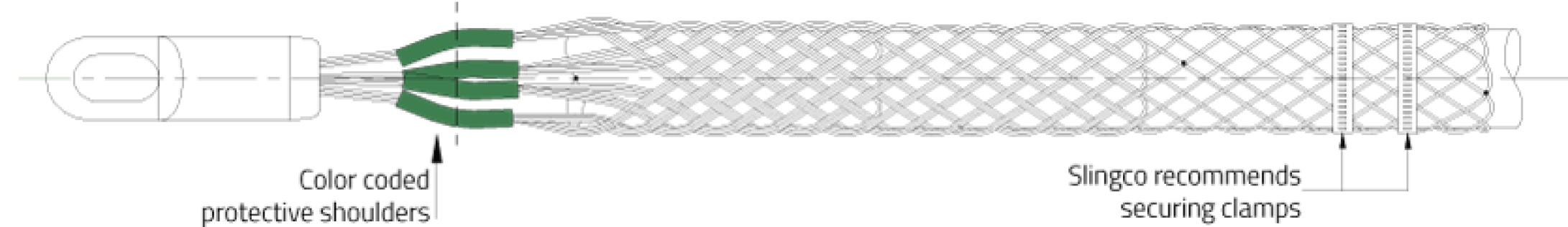

Colour coded for easy identification

Metric
Slingco Part No.	Range (mm)	Lattice Length (mm)	Approx. Break Load (kg)	Colour Code
ZCS2177	6 - 12	720	3,175	Dark Green
ZCS2178	12 - 19	978	4,760	Brown
ZCS2179	19 - 25	1,199	6,395	Light Blue
ZCS2180	25 - 32	1,529	11,340	Gold
ZCS2181	32 - 38	1,289	14,061	Black
ZCS2182	38 - 44	1,860	14,061	Red
ZCS2183	44 - 57	1,747	19,505	Dark blue
ZCS2779	51 - 63	1,370	21,772	Yellow
ZCS2780	63 - 76	1,311	21,772	Orange
ZCS2781	76 - 89	1,342	21,772	Aluminium
ZCS2782	89 - 102	1,351	21,772	Light Green

A note about dimensions and tolerances

Imperial
Slingco Part No.	Range (in)	Lattice Length (in)	Approx. Break Load (lb)	Color Code
ZCS2177	0.25 - 0.50	28	7,000	Dark Green
ZCS2178	0.50 - 0.75	39	10,500	Brown
ZCS2179	0.75 -1.00	47	14,100	Light Blue
ZCS2180	1.00 - 1.25	60	25,000	Gold
ZCS2181	1.25 - 1.50	51	31,000	Black
ZCS2182	1.50 - 1.75	73	31,000	Red
ZCS2183	1.75 - 2.25	69	43,000	Dark blue
ZCS2779	2.00 - 2.50	54	48,000	Yellow
ZCS2780	2.50 - 3.00	52	48,000	Orange
ZCS2781	3.00 - 3.50	53	48,000	Aluminum
ZCS2782	3.50 - 4.00	54	48,000	Light Green
