Splicing Grips - Rotating Swivel Link

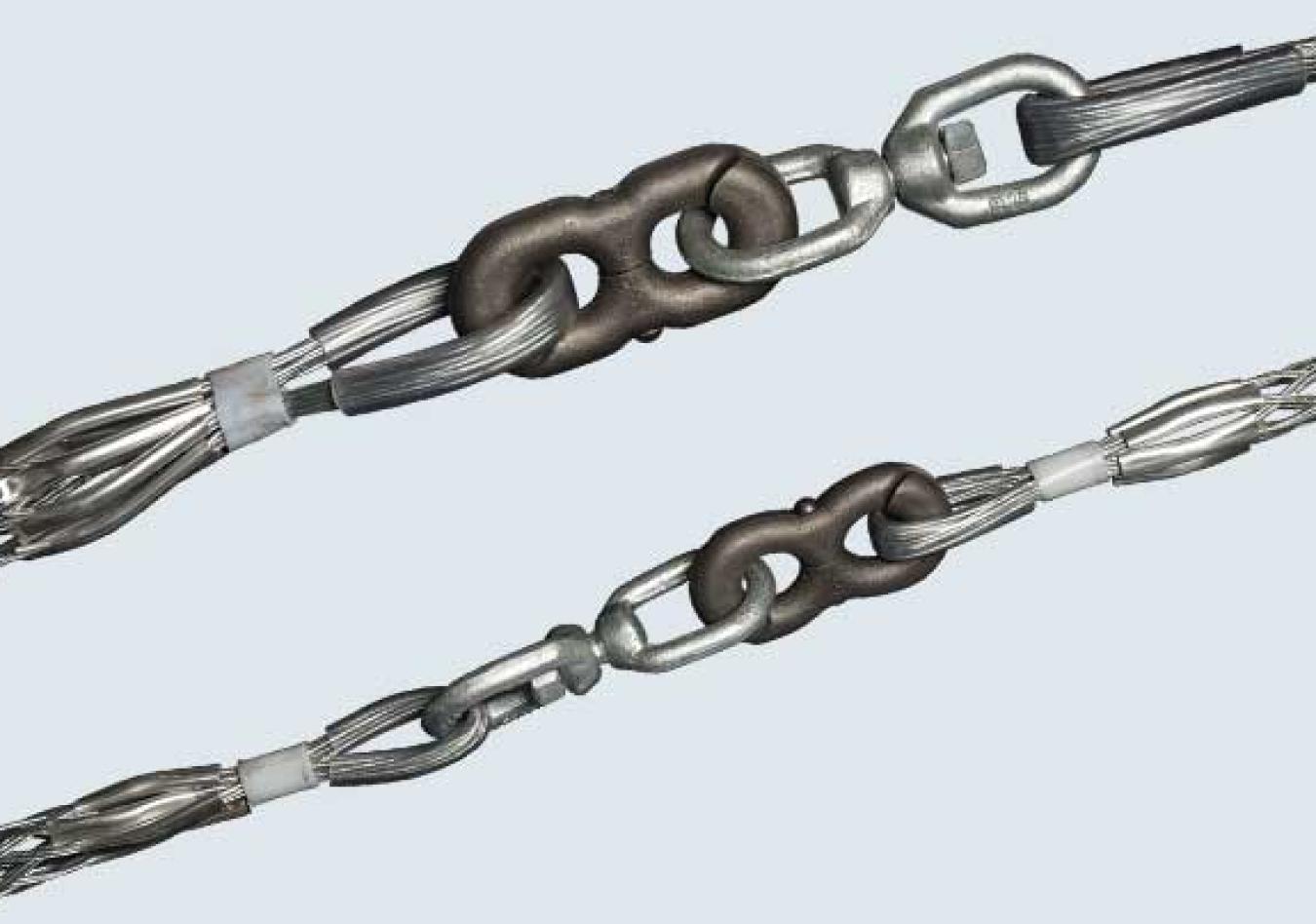

Slingco Rotating Swivel Link Grips are perfect for stringing replacement wire and cable on equipment and in drilling or rigging systems. Not recommended for use in overhead stringing applications. Use the existing cable as a pull wire to string the replacement cable. These grips are available with differently sized grips for each side. Call for assistance in selecting the proper grip. Link opens for easy installation and adjustment. Made of galvanised steel.

Warning

Cancer and Reproductive Harm www.P65Warnings.ca.gov

Contact Slingco

Features

Suitable for drilling rigging systems
Link opens for easy installation and adjustment
Can be used with different sized grips on each side

Metric

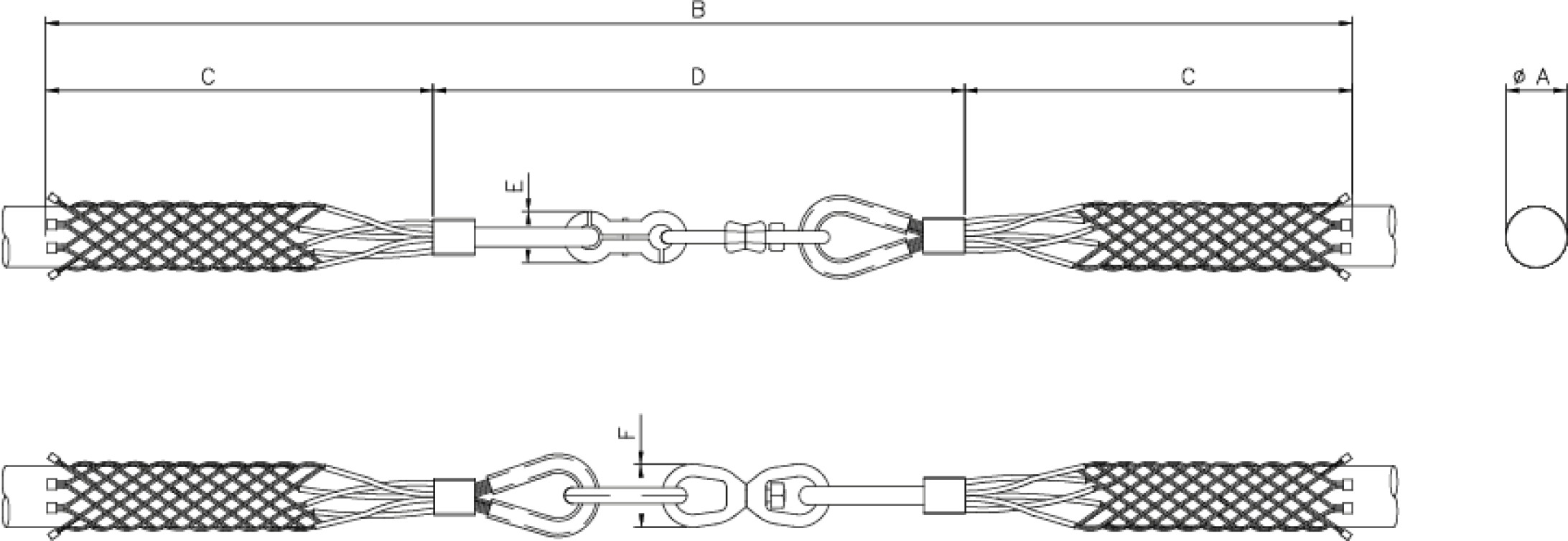

Slingco Part No.	Range (mm)	Ø A Length (mm)	B Length (mm)	C Length (mm)	D Length (mm)	E Length (mm)	F Length (mm)	Approx. Break Load (kg)
ZCS3493	6 - 13	9.5	2,542	1,127	288	22	32	1,089
ZCS3494	13 - 25	19	2,621	1,160	301	35	32	1,599
ZCS3495	25 - 38	32	2,654	1,160	334	41	41	2,300
ZCS3496	38 - 51	44.5	2,673	1,160	353	41	51	3,629
ZCS3497	51 - 70	60.5	2,673	1,160	353	41	51	4,537
ZCS3498	70 - 90	80	2,673	1,160	353	41	51	4,537
ZCS3499	89 - 108	98.5	2,753	1,200	353	41	51	4,537

A note about dimensions and tolerances

Imperial
Slingco Part No.	Range (in)	Ø A Length (mm)	B Length (in)	C Length (in)	D Length (in)	E Length (in)	F Length (in)	Approx. Break Load (lb)
ZCS3493	0.25 - 0.50	9.5	100.0	44.3	11.3	0.87	1.25	2,400
ZCS3494	0.50 - 1.00	19	103.2	45.7	11.8	1.38	1.25	3,526
ZCS3495	1.00 - 1.50	32	104.5	45.7	13.1	1.61	1.61	5,070
ZCS3496	1.50 - 2.00	44.5	105.2	45.7	13.9	1.61	2.0	8,000
ZCS3497	2.00 - 2.75	60.5	105.2	45.7	13.9	1.61	2.0	10,000
ZCS3498	2.75 - 3.50	80	105.2	45.7	13.9	1.61	2.0	10,000
ZCS3499	3.50 - 4.25	98.5	108.4	45.7	13.9	1.61	2.0	10,000
