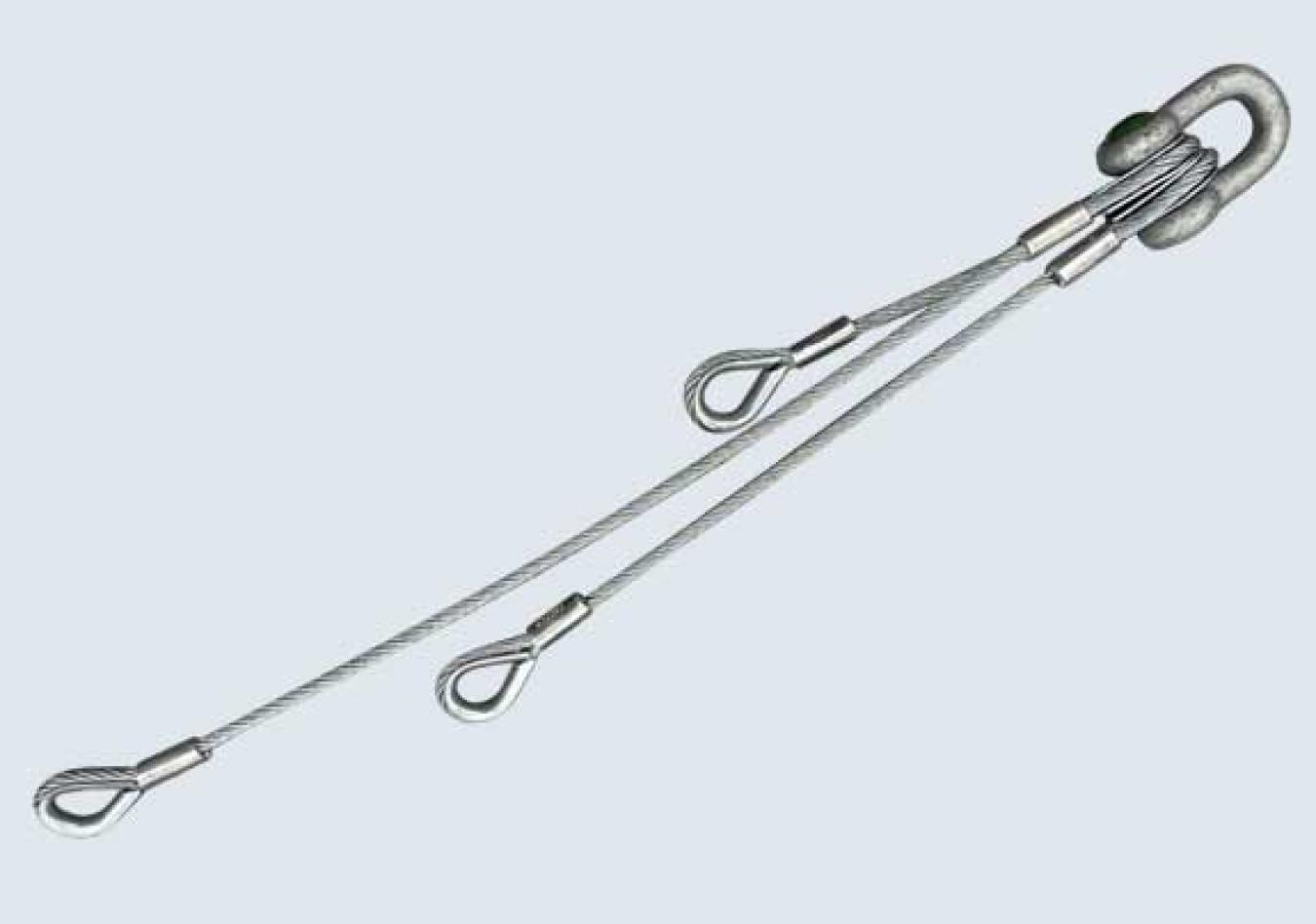

Features
- For simultaneous pulling multiple conductors
- Helps to minimise the size of the pulling bundle
- Available in 3 or 4 leg versions
Metric

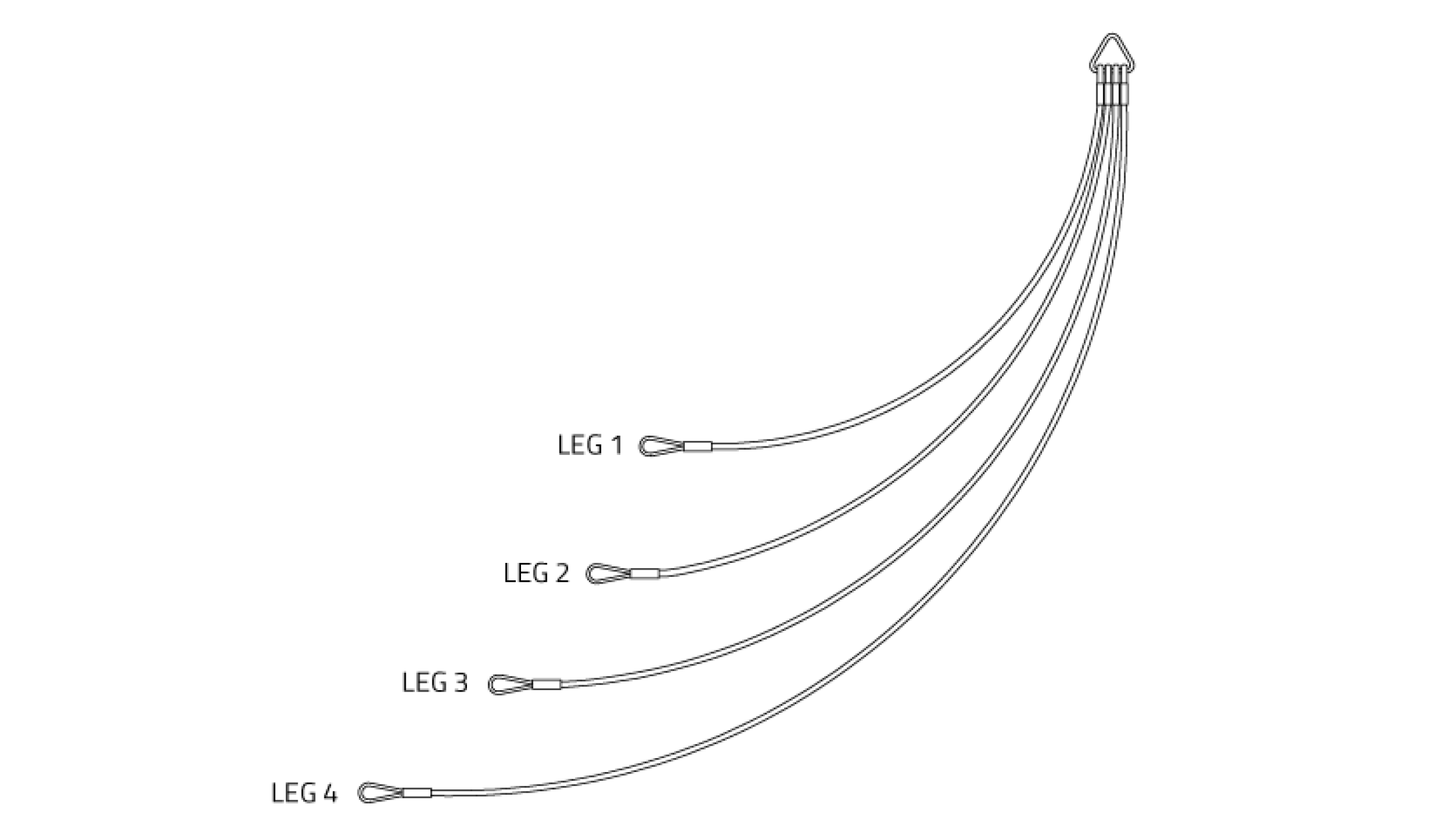

| Slingco Part No. | Leg 1 Length (mm) | Leg 2 Length (mm) | Leg 3 Length (mm) | Leg 4 Length (mm) | Head of Sling Swivel Suggestion | Leg Swivel Suggestion |
|---|---|---|---|---|---|---|
| ZSH2264 | 520 | 880 | 1,340 | n/a | ZSW2092 | ZSW2091 |
| ZSH2265 | 520 | 880 | 1,340 | 1,760 | ZSW2092 | ZSW2092 |
Minimum break load – 5,000 lb
A note about dimensions and tolerancesImperial
| Slingco Part No. | Leg 1 Length (in) | Leg 2 Length (in) | Leg 3 Length (in) | Leg 4 Length (in) | Head of Sling Swivel Suggestion | Leg Swivel Suggestion |
|---|---|---|---|---|---|---|
| ZSH2264 | 20.5 | 34.65 | 52.75 | n/a | ZSW2092 | ZSW2091 |
| ZSH2265 | 20.5 | 34.65 | 52.75 | 69.3 | ZSW2092 | ZSW2092 |
Minimum break load – 5,000 lb
A note about dimensions and tolerances
