Features

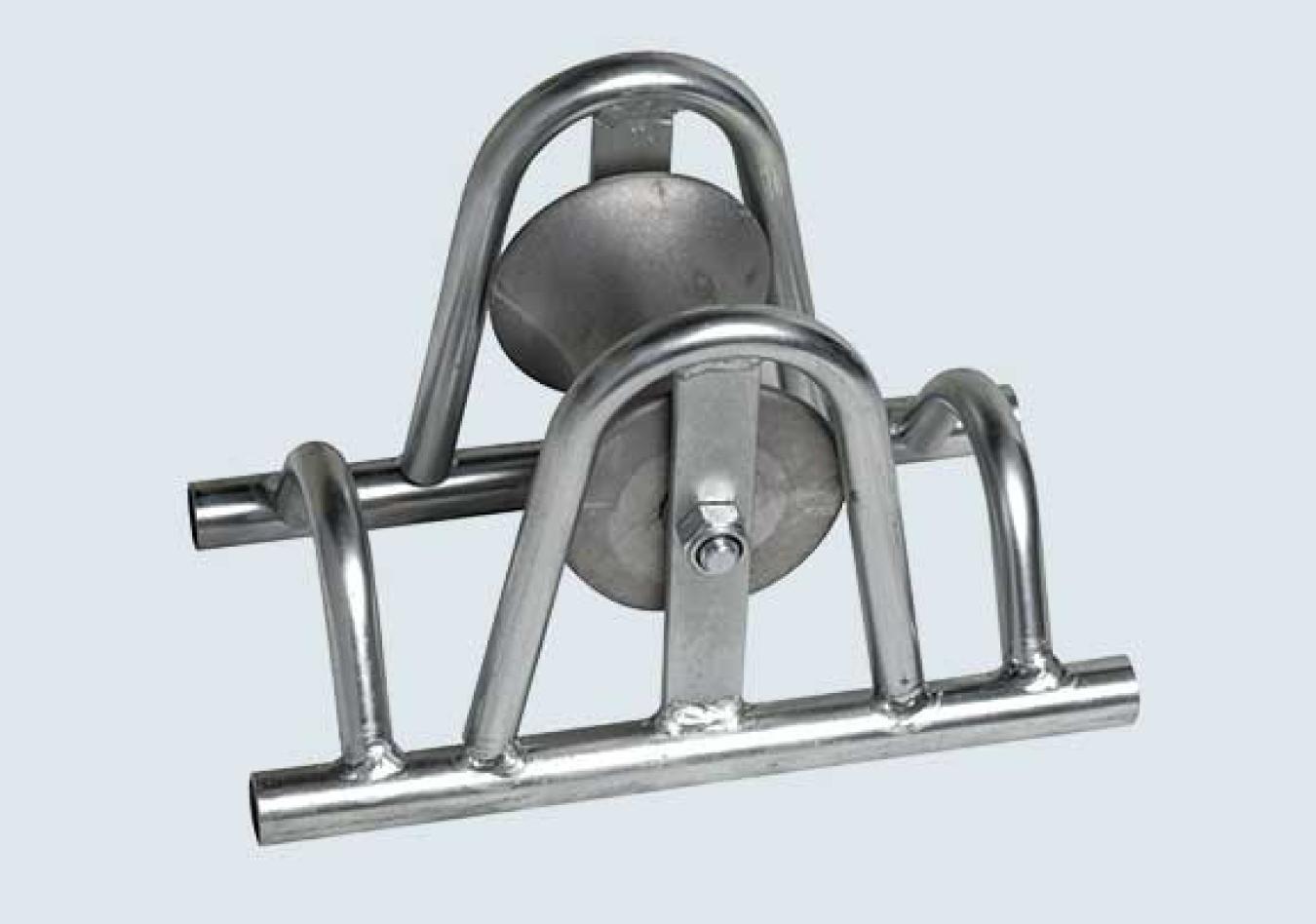

- Heavy duty tubular frame straight line bridge roller
- Fitted with hoops to fit over previously laid cables
- 76mm diameter aluminium roller
- Oil impregnated maintenance free bushes fitted
- Bright zinc plated finish
- 90mm diameter cable capacity
- Weight 2.5Kg
Metric

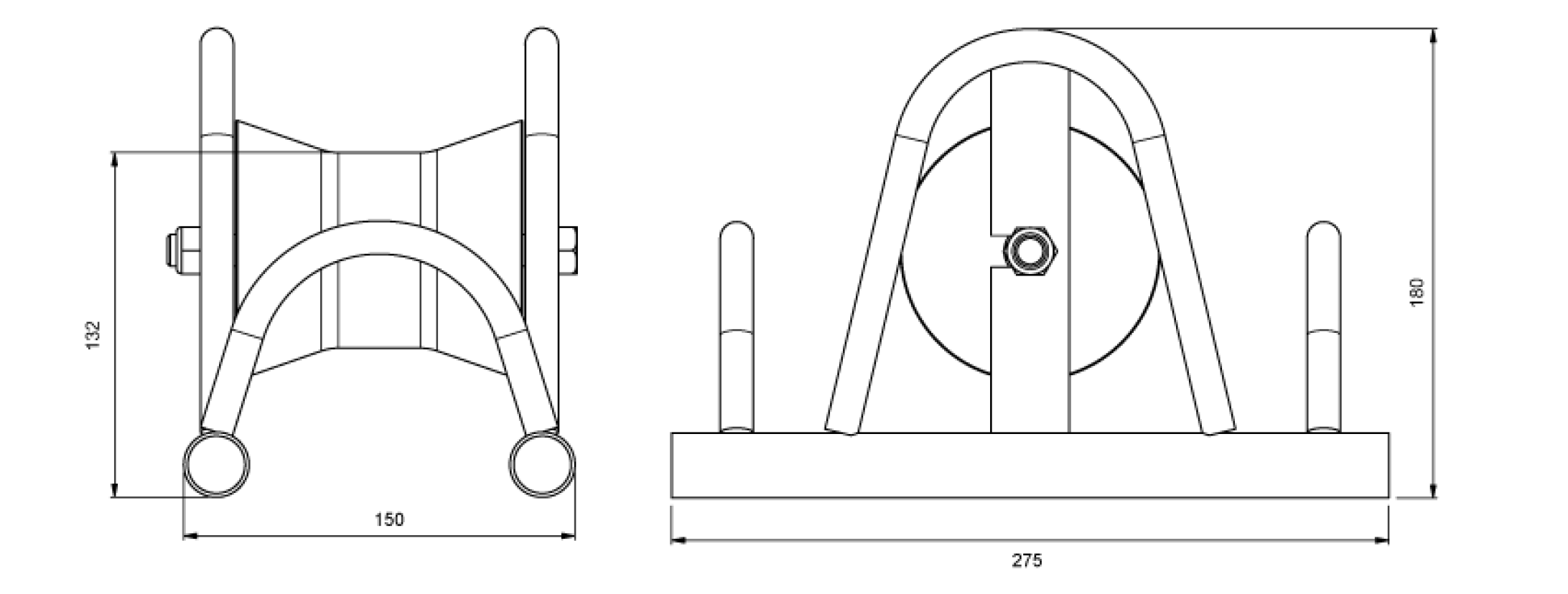

| Slingco Part No. | Base Footprint (mm) | Height (mm) | Max Cable Diameter (mm) | Weight (kg) |
|---|---|---|---|---|
| ZGP8270 | 275 x 150 | 180 | 90 | 2.5 |
Imperial
| Slingco Part No. | Base Footprint (in) | Height (in) | Max Cable Diameter (in) | Weight (lb) |
|---|---|---|---|---|
| ZGP8270 | 10.83 x 5.9 | 7 | 3.54 | 5.5 |
