Crimper Die Sets

Dies for 4 - 6 tonne or 12 tonne crimpers.

“W” style die inserts for installing taps, splices, and terminal connectors. The “W” die inserts lock securely & easily into place with the positive lock, springloaded die buttons. Fits 'D3' groove.

Slingco offers D3 groove W-Dies as well as Kearney type O-Dies.

12 T dies available. Equivalent to Kearney WH-2 & WH-3 dies.

Warning

Cancer and Reproductive Harm www.P65Warnings.ca.gov

Contact Slingco

Features

Easy Burndy or Kearney cross reference
Fit D3 groove or Kearney Seat
W-Dies for 4-6 Tonne tools
O-Dies for 4-6 Tonne tools
WH2/WH3 for 12 Tonne tools

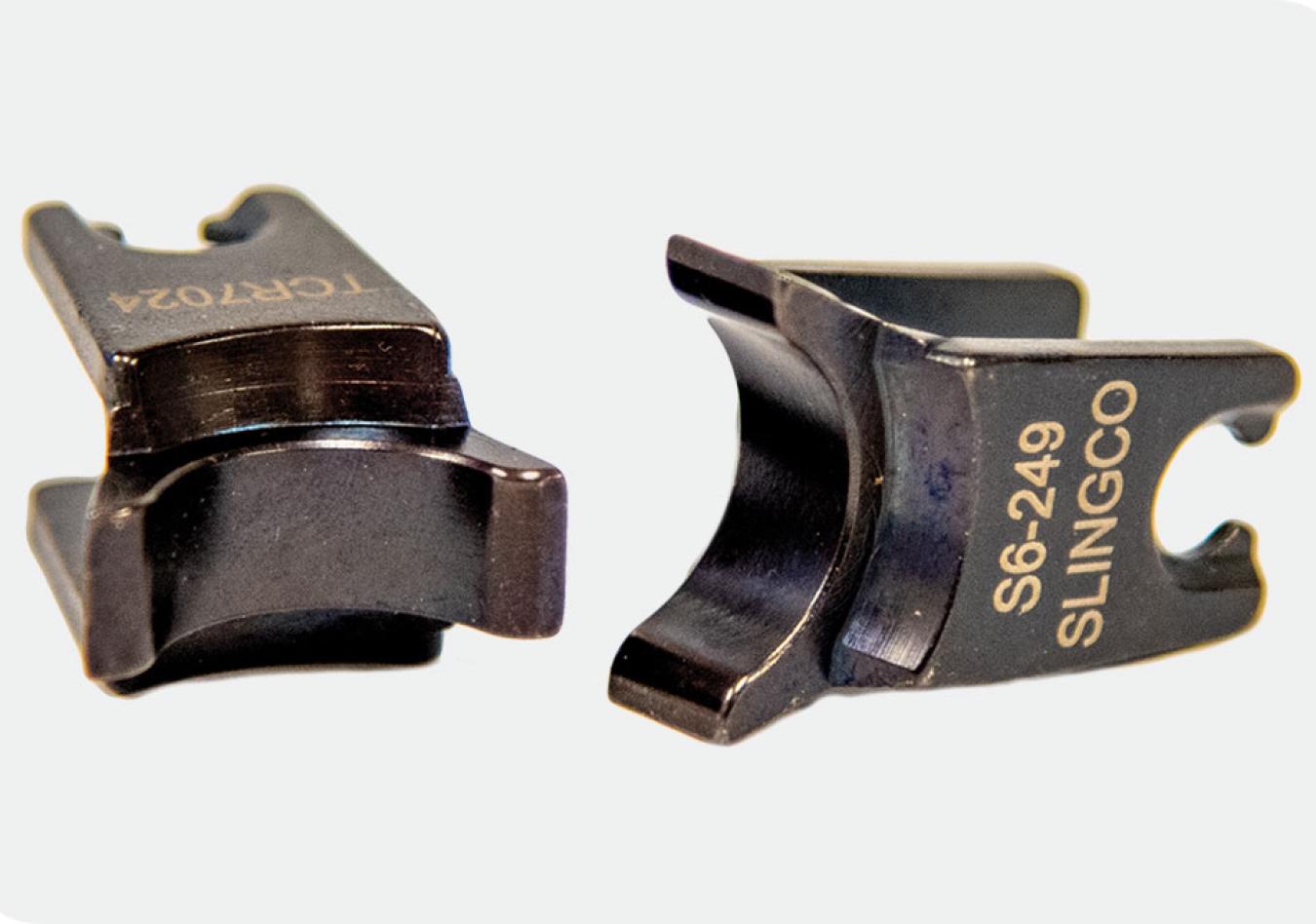

W-Die Sets (D3 Insert)
Slingco Part No.	Slingco Ref.	Burndy Equiv.
TCR7020	S6-K840	WK840
TCR7021	S6-BG	WBG
TCR7022	S6-O	WO
TCR7023	S6-247	W247
TCR7024	S6-249	W249
TCR7025	S6-161	W161
TCR7027	S6-163	W163
TCR7028	S6-164	W164
TCR7029	S6-165	W165
TCR7030	S6-166	W166
TCR7031	S6-167	W167
TCR7034	S6-237	W237
TCR7036	S6-239	W239
TCR7037	S6-241	W241
TCR7038	S6-243	W243
TCR7039	S6-245	W245
TCR7047	S6-C	WC
TCR7058	S6-25RT	W25RT
TCR7059	S6-26RT	W26RT

A note about dimensions and tolerances

O-Die Sets (Kearney Seat)
Slingco Part No.	Slingco Ref.	Kearney Die Size
TCR10117	O Die - 1/2	1/2
TCR10118	O Die - 1/4	1/4
TCR10119	O Die - 3/8	3/8
TCR10120	O Die - 5/8-1	5/8-1
TCR10121	O Die - 5/16	5/16
TCR10122	O Die - 9/16	9/16
TCR10123	O Die - 11/16	11/16
TCR10124	O Die - 19/32	19/32
TCR10125	O Die - 620	620
TCR10126	O Die - 635	635
TCR10127	O Die - 747	747
TCR10128	O Die - 781	781
TCR10129	O Die - 840	840
TCR10130	O Die - 845	845
TCR10131	O Die - B	B
TCR10132	O Die - 3/16	3/16
TCR10133	O Die - T	T
TCR10134	O Die - D	D
TCR10135	O Die - J	J
TCR10136	O Die - K	K
TCR10137	O Die - O	O
TCR10138	O Die - P	P
TCR10139	O Die - 737	737

A note about dimensions and tolerances

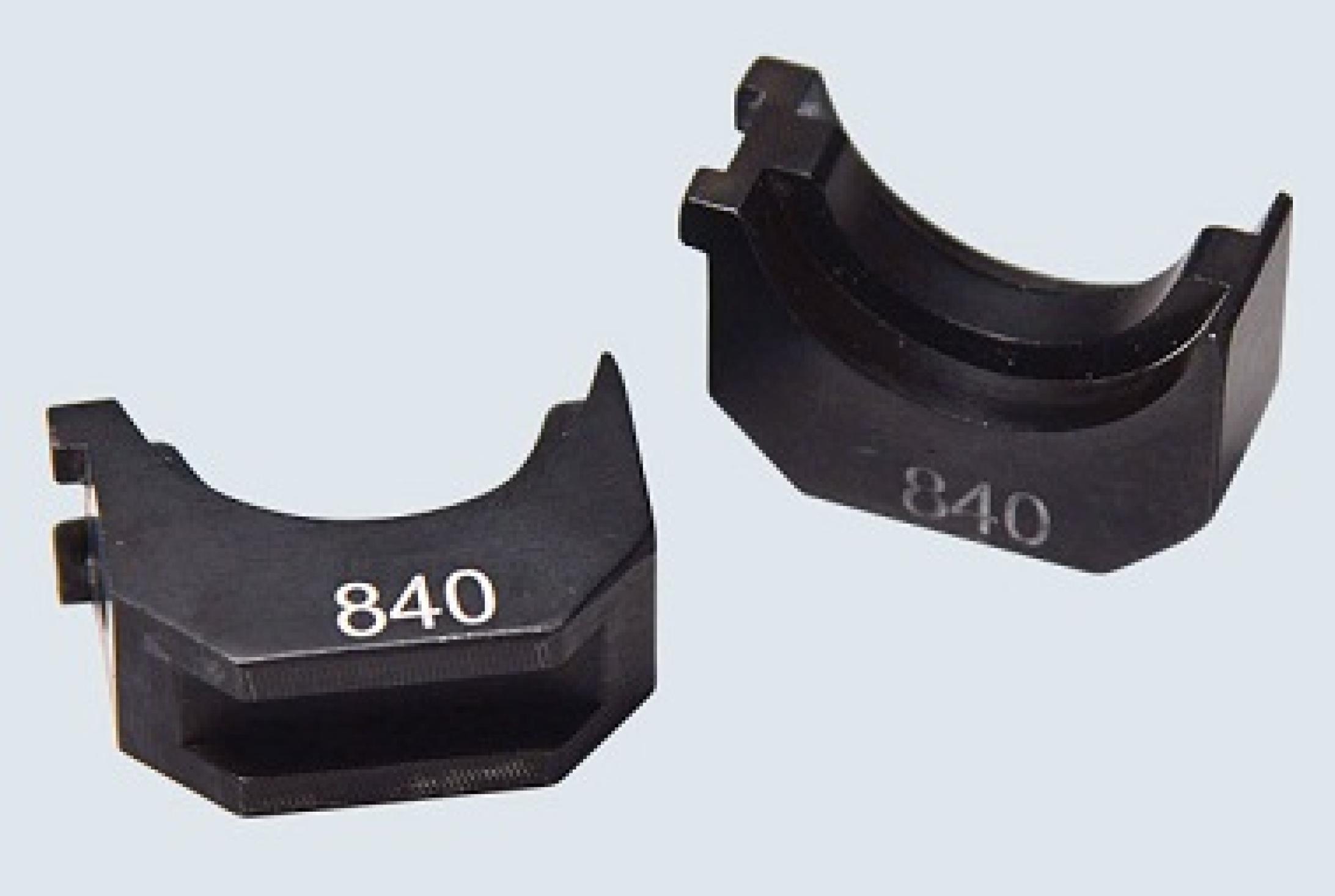

WH2 / WH3 Die Sets
Slingco Part No.	Slingco Ref.	Kearney Die Size
TCR09864	WH2/WH3 Die - BKT	BKT
TCR09865	WH2/WH3 Die - C	C
TCR09866	WH2/WH3 Die - D	D
TCR09867	WH2/WH3 Die - N	N
TCR09868	WH2/WH3 Die - O	O
TCR09869	WH2/WH3 Die - P	P
TCR09870	WH2/WH3 Die - U	U
TCR09871	WH2/WH3 Die - 510	510
TCR09873	WH2/WH3 Die - 635	635
TCR09874	WH2/WH3 Die - 727	727
TCR09875	WH2/WH3 Die - 737	737
TCR09876	WH2/WH3 Die - 747	747
TCR09877	WH2/WH3 Die - 781	781
TCR09878	WH2/WH3 Die - 840	840
TCR09880	WH2/WH3 Die - 5/16	5/16
TCR09882	WH2/WH3 Die - 1/2	1/2
TCR09883	WH2/WH3 Die - 9/16	9/16
TCR09885	WH2/WH3 Die - 5/8	5/8
TCR09887	WH2/WH3 Die - 15/16	15/16
TCR09890	WH2/WH3 Die - 15/16H	15/16H
TCR09892	WH2/WH3 Die - 1-1/8-1	1-1/8-1
TCR09893	WH2/WH3 Die - 1-1/8-2	1-1/8-2
TCR09895	WH2/WH3 Die - 1-1/2H	1-1/2H
TCR09896	WH2/WH3 Die - 840H Wide	840H Wide
