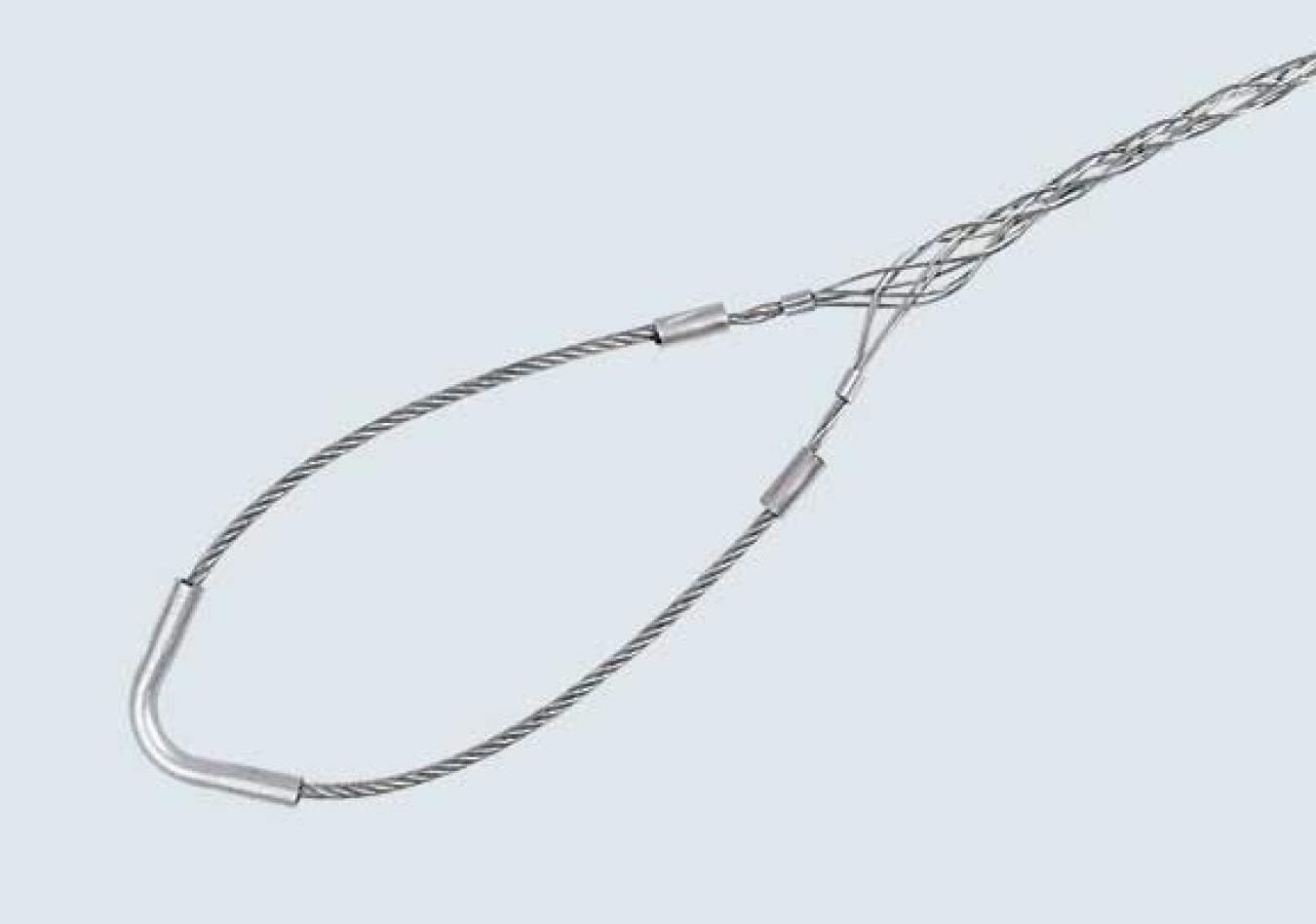

Service Drop Grips

Use these grips to support cables in manufacturing, industrial and open space environments. The extended eye allows for easy installation and hanging from conveniently placed connection points. Also great for control room and wire to rack applications.

Warning

Cancer and Reproductive Harm www.P65Warnings.ca.gov

Contact Slingco

Features

Support cables in manufacturing, industrial and open space environments
Extended eye makes facilitates installation at connection points
Available in Galvanised or 304 Stainless Steel wire

Metric
Slingco Part No.	Range (mm)	Wire Material	Eye Length (mm)	Approx. Break Load (kg)
ZCS7684	5.6 - 8.1	Galvanised	229	499
ZCS7685	7.6 - 10.9	Galvanised	229	499
ZCS7686	10.4 - 14.2	Galvanised	229	499
ZCS7687	13.5 - 18.5	Galvanised	229	499
ZCS7688	17.8 - 21.6	Galvanised	229	861
ZCS7689	20.8 - 25.4	Galvanised	229	861
ZCS7690	24.4 - 31.7	Galvanised	178	861
ZCS09733	5.6 - 8.1	304 Stainless Steel	229	294
ZCS09734	7.6 - 10.9	304 Stainless Steel	229	499
ZCS09735	10.4 - 14.2	304 Stainless Steel	229	499
ZCS09736	13.5 - 18.5	304 Stainless Steel	229	499
ZCS09737	17.8 - 21.6	304 Stainless Steel	229	861
ZCS09738	20.8 - 25.4	304 Stainless Steel	229	861
ZCS09739	24.4 - 31.7	304 Stainless Steel	178	861

A note about dimensions and tolerances

Imperial
Slingco Part No.	Range (in)	Wire Material	Eye length (in)	Approx. Break Load (lb)
ZCS7684	0.22 - 0.32	Galvanized	9	1,100
ZCS7685	0.30 - 0.43	Galvanized	9	1,100
ZCS7686	0.41 - 0.56	Galvanized	9	1,100
ZCS7687	0.53 - 0.73	Galvanized	9	1,100
ZCS7688	0.70 - 0.85	Galvanized	9	1,900
ZCS7689	0.82 - 1.00	Galvanized	9	1,900
ZCS7690	0.96 - 1.25	Galvanized	7	1,900
ZCS09733	0.22 - 0.32	304 Stainless Steel	9	650
ZCS09734	0.30 - 0.43	304 Stainless Steel	9	1,100
ZCS09735	0.41 - 0.56	304 Stainless Steel	9	1,100
ZCS09736	0.53 - 0.73	304 Stainless Steel	9	1,100
ZCS09737	0.70 - 0.85	304 Stainless Steel	9	1,900
ZCS09738	0.82 - 1.00	304 Stainless Steel	9	1,900
ZCS09739	0.96 - 1.25	304 Stainless Steel	7	1,900
