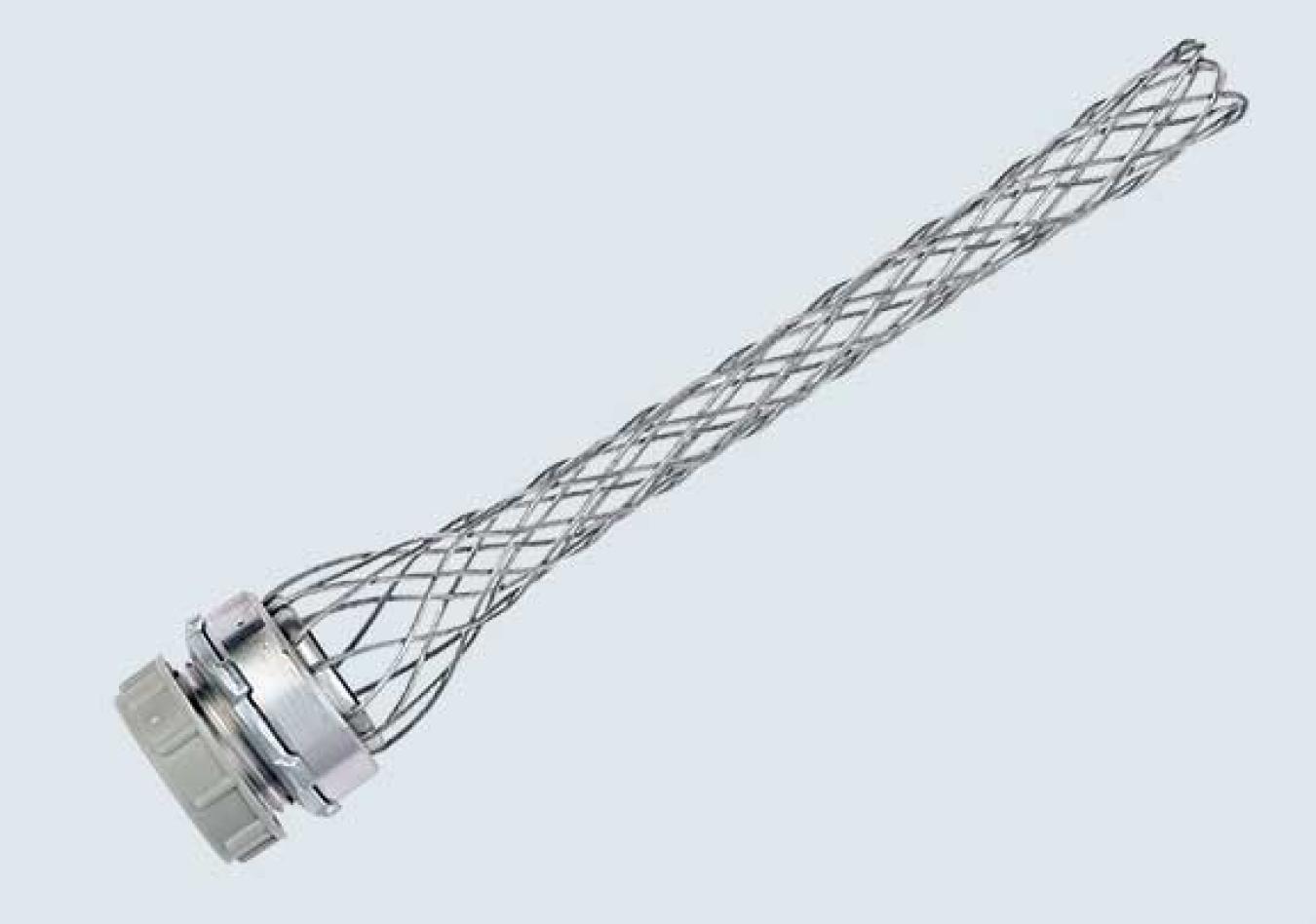

Dust Tight

Dust-Tight Cord Grips provide strain relief and bend support for cables running into machinery and connection boxes. These are sized to fit standard NPT connections from ½” to 2.5” NPT. Can also be installed in standard enclosure knockouts. These grips are made of galvanised wire mesh and provide bend support and cable pull-out resistance. The insulated versions come with installed synthetic cap for added protection from particle egress.

Contact Slingco

Features

Provide bend support and cable pull-out resistance
Sized to fit standard NPT connections and knockouts

Metric
Slingco Part No. (Insulated)	Slingco Part No. (Non-insulated)	Range (mm)	NPT Size (in)
ZCS7674	ZCS7756	5.6 - 8.1	0.5
ZCS7675	ZCS7757	7.6 - 10.9	0.5
ZCS7676	ZCS7758	10.1 - 13.7	0.5
ZCS7677	ZCS7759	13.2 - 18.5	0.75
ZCS7678	ZCS7760	17.8 24.6	1
ZCS7679	ZCS7761	23.8 - 31.8	1.25
ZCS7680		30.5 - 38.1	1.5
ZCS7681		38.1 - 44.5	2
ZCS7682		41.1 - 50.8	2.5
ZCS7683		50.8 - 62.2	2.5

A note about dimensions and tolerances

Imperial
Slingco Part No. (Insulated)	Slingco Part No. (Non-insulated)	Range (in)	NPT Size (in)
ZCS7674	ZCS7756	0.22 - 0.32	0.5
ZCS7675	ZCS7757	0.30 - 0.43	0.5
ZCS7676	ZCS7758	0.40 - 0.54	0.5
ZCS7677	ZCS7759	0.52 - 0.73	0.75
ZCS7678	ZCS7760	0.70 - 0.97	1
ZCS7679	ZCS7761	0.94 - 1.25	1.25
ZCS7680		1.20 - 1.50	1.5
ZCS7681		1.40 - 1.75	2
ZCS7682		1.62 - 2.00	2.5
ZCS7683		2.00 - 2.45	2.5
