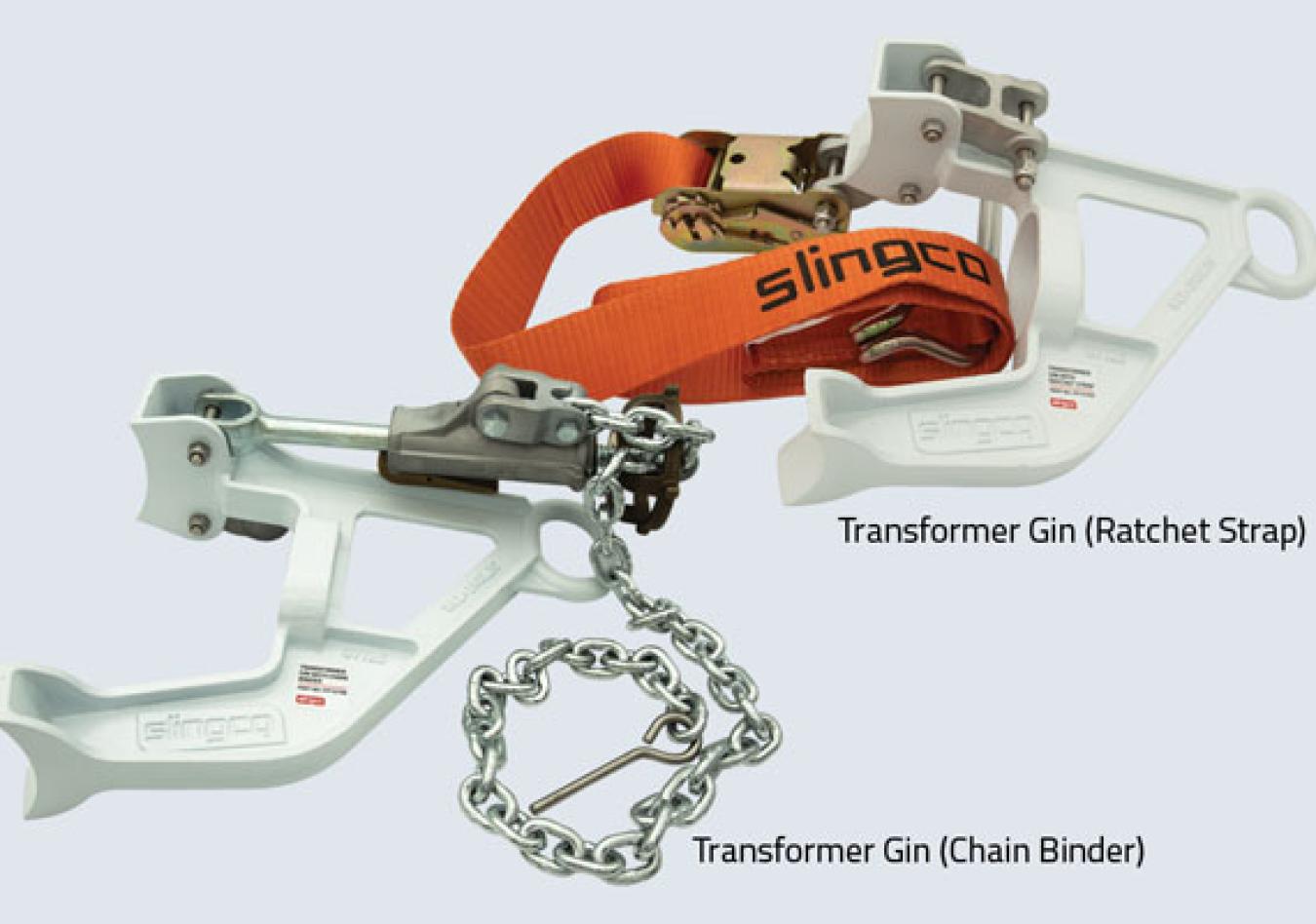

Features
- Made of Ductile Iron
- Safe for use up to 1,900 lb
- Installs over 3-3/4” x 4-3/4” cross arms for more versatility
- Available in Chain Binder and Ratchet Strap configurations
Metric
| Slingco Part No. | Weight (kg) | Working Load Limit (WLL)* (kg) | Eye Offset from Pole OD (mm) |
|---|---|---|---|
| ITP15768 (Chain Binder) | 5.36 | 861.8 | 270 |
| ITP15769 (Ratchet Strap) | 4.41 | 861.8 | 270 |
*The working load limit represents the maximum load that should be applied to the product under any circumstances. The limit is determined based on the load being evenly distributed in a straight-line pull. The user must set a working load limit for each use. Many factors should be considered including but not limited to, the load, speed, acceleration, rope length, shock, wear, the condition of all equipment, and the risk to people and/or property if any component breaks.
A note about dimensions and tolerancesImperial
| Slingco Part No. | Weight (lb) | Working Load Limit (WLL)* (lb) | Eye Offset from Pole OD (in) |
|---|---|---|---|
| ITP15768 (Chain Binder) | 11.82 | 1,900 | 10.63 |
| ITP15769 (Ratchet Strap) | 9.72 | 1,900 | 10.63 |
*The working load limit represents the maximum load that should be applied to the product under any circumstances. The limit is determined based on the load being evenly distributed in a straight-line pull. The user must set a working load limit for each use. Many factors should be considered including but not limited to, the load, speed, acceleration, rope length, shock, wear, the condition of all equipment, and the risk to people and/or property if any component breaks.
A note about dimensions and tolerances
