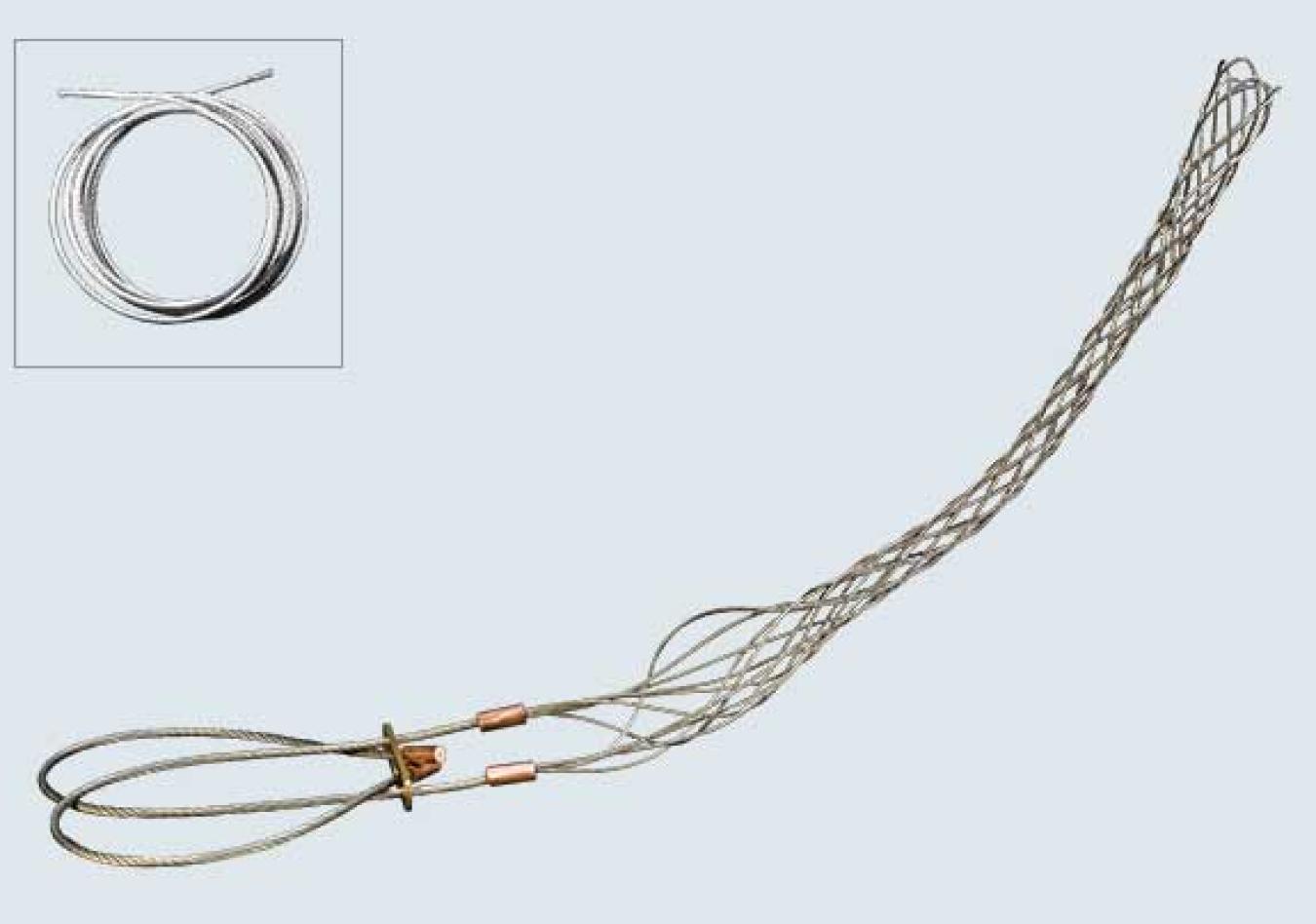

Features
- Made from 304 stainless steel
- Designed with adjustable universal eye
- Use when the end of the cable is not accessible
Metric
| Slingco Part No. | Approx. Break Load (kg) | Lattice Length (mm) | Range (mm) |
|---|---|---|---|
| ZCS2672 | 240 | 254 | 12 - 16 |
| ZCS2673 | 360 | 254 | 16 - 19 |
| ZCS2674 | 460 | 330 | 19 - 25 |
| ZCS2675 | 730 | 355 | 25 - 31 |
| ZCS2676 | 730 | 381 | 31 - 38 |
| ZCS2677 | 730 | 432 | 38 - 44 |
| ZCS2678 | 975 | 483 | 44 - 50 |
| ZCS2679 | 1,480 | 533 | 50 - 63 |
| ZCS2680 | 1,480 | 584 | 63 - 76 |
| ZCS2681 | 2,222 | 635 | 76 - 89 |
| ZCS2682 | 2,222 | 686 | 89 - 102 |
Imperial
| Slingco Part No. | Approx. Break Load (lb) | Lattice Length (in) | Range (in) |
|---|---|---|---|
| ZCS2672 | 530 | 10 | 0.50 - 0.63 |
| ZCS2673 | 790 | 10 | 0.63 - 0.75 |
| ZCS2674 | 1,020 | 13 | 0.75 - 1.00 |
| ZCS2675 | 1,610 | 14 | 1.00 - 1.25 |
| ZCS2676 | 1,610 | 15 | 1.25 - 1.50 |
| ZCS2677 | 1,610 | 17 | 1.50 - 1.75 |
| ZCS2678 | 2,150 | 19 | 1.75 - 2.00 |
| ZCS2679 | 3,260 | 21 | 2.00 - 2.50 |
| ZCS2680 | 3,280 | 23 | 2.50 - 3.00 |
| ZCS2681 | 4,900 | 25 | 3.00 - 3.50 |
| ZCS2682 | 4,900 | 27 | 3.50 - 4.00 |
