Features
- Made from 304 stainless steel

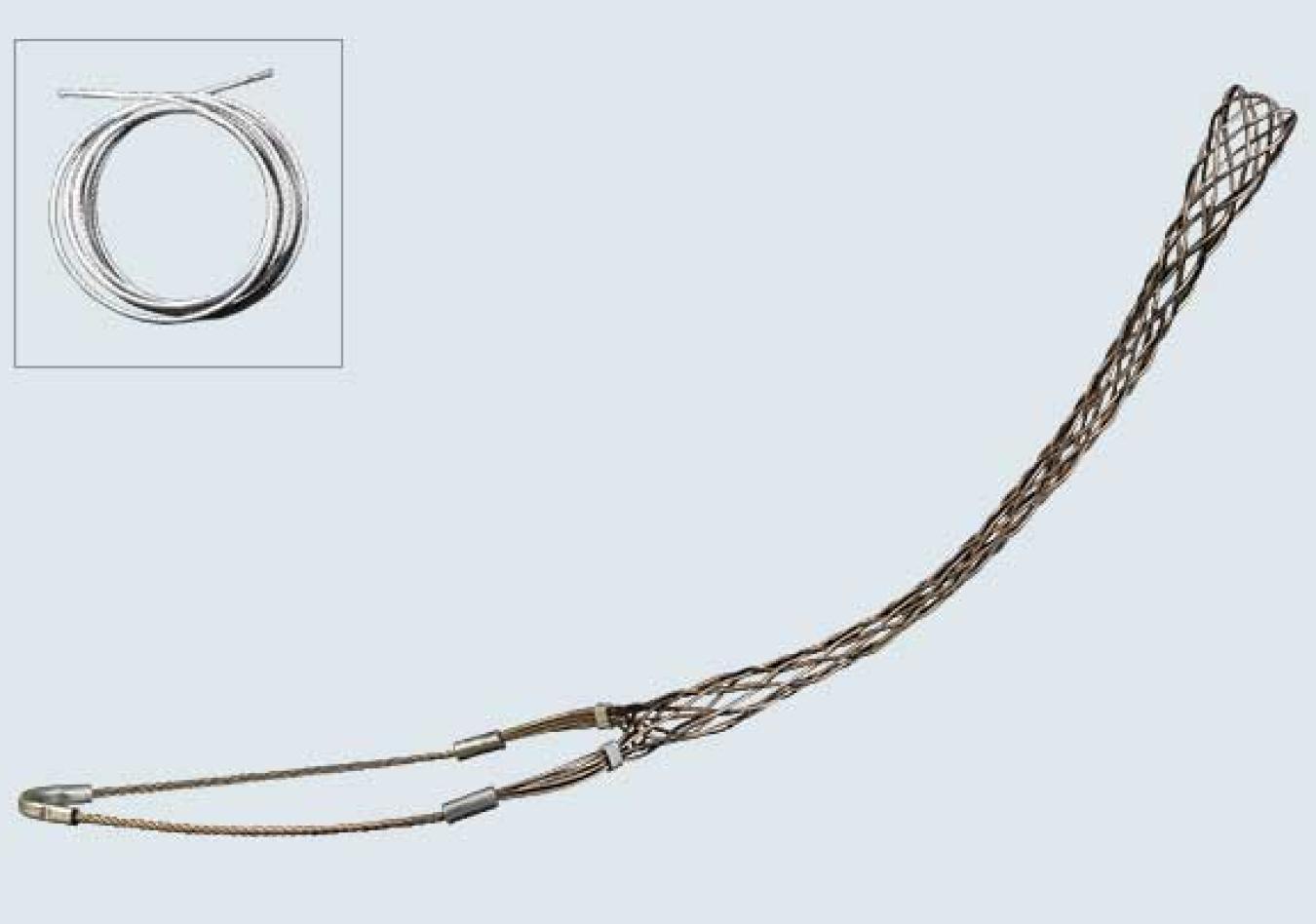

- Designed for use when the end of the cable is not accessible
Metric
| Slingco Part No. | Approx. Break Load (kg) | Lattice Length (mm) | Range (mm) |
|---|---|---|---|
| ZCS1904 | 255 | 247 | 12 - 16 |
| ZCS1905 | 358 | 247 | 16 - 19 |
| ZCS1906 | 470 | 331 | 19 - 25 |
| ZCS1907 | 770 | 344 | 25 - 31 |
| ZCS1908 | 770 | 382 | 31 - 38 |
| ZCS1909 | 770 | 420 | 38- -44 |
| ZCS1910 | 1,040 | 509 | 44 - 50 |
| ZCS1911 | 1,540 | 535 | 50 - 63 |
| ZCS1912 | 1,540 | 611 | 63 - 76 |
| ZCS1913 | 2,265 | 662 | 76 - 89 |
| ZCS1914 | 2,265 | 738 | 89 - 102 |
Imperial
| Slingco Part No. | Approx. Break Load (lb) | Lattice Length (in) | Range (in) |
|---|---|---|---|
| ZCS1904 | 567 | 9.7 | 0.50 - 0.63 |
| ZCS1905 | 890 | 9.7 | 0.63 - .0.75 |
| ZCS1906 | 1,040 | 13 | 0.75 - 1.00 |
| ZCS1907 | 1,700 | 13.5 | 1.00 - 1.25 |
| ZCS1908 | 1,700 | 15 | 1.25 - 1.50 |
| ZCS1909 | 1,700 | 16.5 | 1.50 - 1.75 |
| ZCS1910 | 2,300 | 20 | 1.75 - 2.00 |
| ZCS1911 | 3,400 | 21 | 2.00 - 2.50 |
| ZCS1912 | 3,400 | 24 | 2.50 - 3.00 |
| ZCS1913 | 5,000 | 26 | 3.00 - 3.50 |
| ZCS1914 | 5,000 | 29 | 3.50 - 4.00 |
