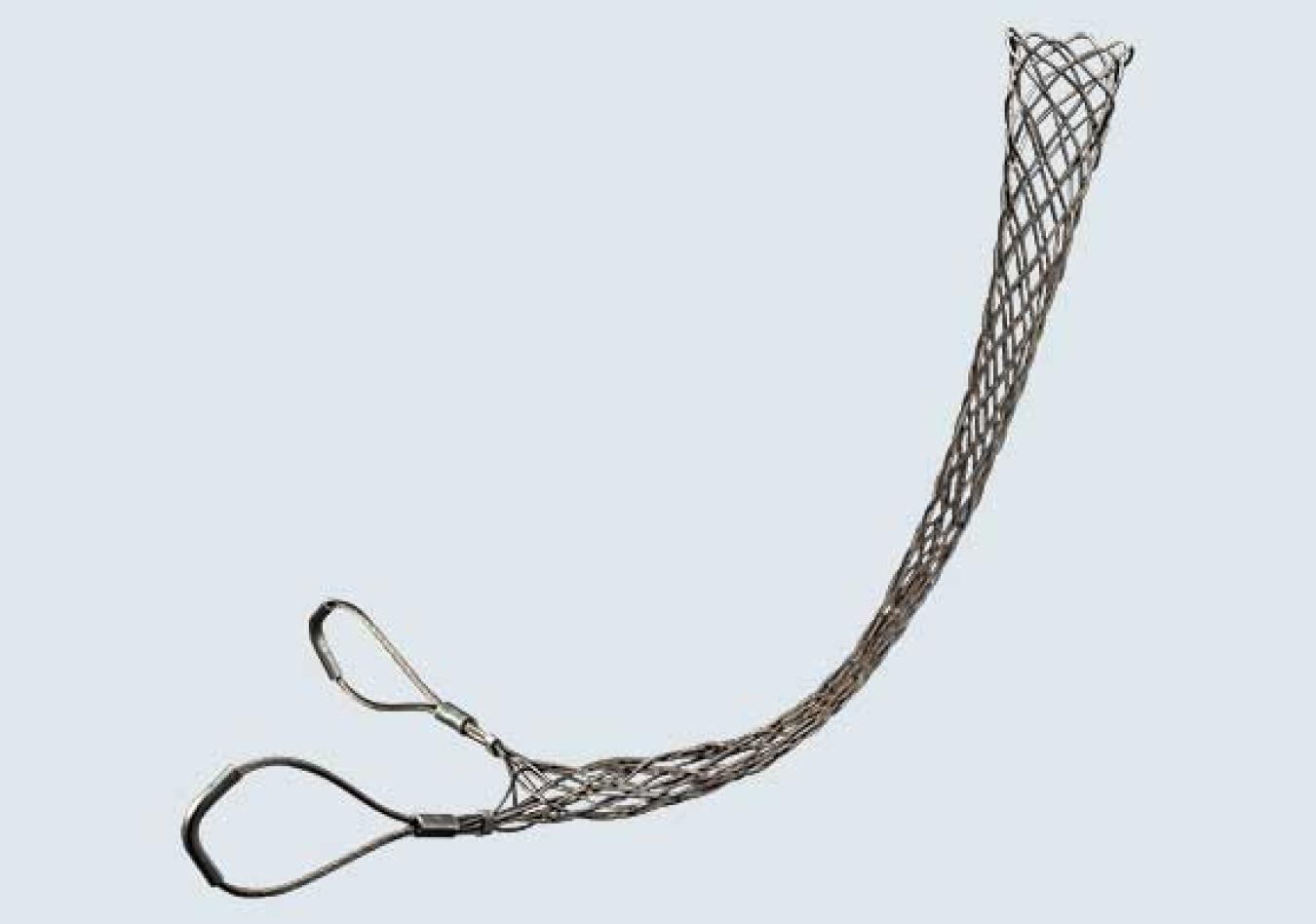

Double Eye Closed Mesh Cable Support Grips

Double eye closed mesh support grip in 304 stainless steel. Two eyes for two connect/support points. Closed mesh for when end of cable is available.

Warning

Cancer and Reproductive Harm www.P65Warnings.ca.gov

Features

Metric
Slingco Part No.	Approx. Break Load (kg)	Lattice Length (mm)	Lattice Material	Range (mm)
ZCS2038	230	247	304 Stainless	12 - 16
ZCS2039	335	247	304 Stainless	16 - 19
ZCS2040	450	331	304 Stainless	19 - 25
ZCS2041	695	344	304 Stainless	25 - 31
ZCS2042	695	382	304 Stainless	31 - 38
ZCS2043	910	420	304 Stainless	38- -44
ZCS2044	1,465	509	304 Stainless	44 - 50
ZCS2045	1,465	535	304 Stainless	50 - 63
ZCS2046	1,815	611	304 Stainless	63 - 76
ZCS2047	1,815	662	304 Stainless	76 - 89
ZCS2048	1,815	738	304 Stainless	89 - 102
ZCS6404	1,815	762	304 Stainless	102-114
ZCS6405	1,815	762	304 Stainless	114-127
ZCS6406	1,815	762	304 Stainless	127-140

Imperial
Slingco Part No.	Approx. Break Load (lb)	Lattice Length (in)	Lattice Material	Range (in)
ZCS2038	512	9.7	304 Stainless	0.50 - 0.63
ZCS2039	740	9.7	304 Stainless	0.63 - 0.75
ZCS2040	1,000	13	304 Stainless	0.75 - 1.00
ZCS2041	1,540	15	304 Stainless	1.00 - 1.25
ZCS2042	1,540	16.5	304 Stainless	1.25 - 1.50
ZCS2043	2,010	15	304 Stainless	1.50 - 1.75
ZCS2044	2,300	21	304 Stainless	1.75 - 2.00
ZCS2045	3,230	24	304 Stainless	2.00 - 2.50
ZCS2046	4,000	26	304 Stainless	2.50 - 3.00
ZCS2047	4,000	29	304 Stainless	3.00 - 3.50
ZCS2048	4,000	29	304 Stainless	3.50 - 4.00
ZCS6404	4,000	30	304 Stainless	4.00 - 4.50
ZCS6405	4,000	30	304 Stainless	4.50 - 5.00
ZCS6406	4,000	30	304 Stainless	5.00 - 5.50
