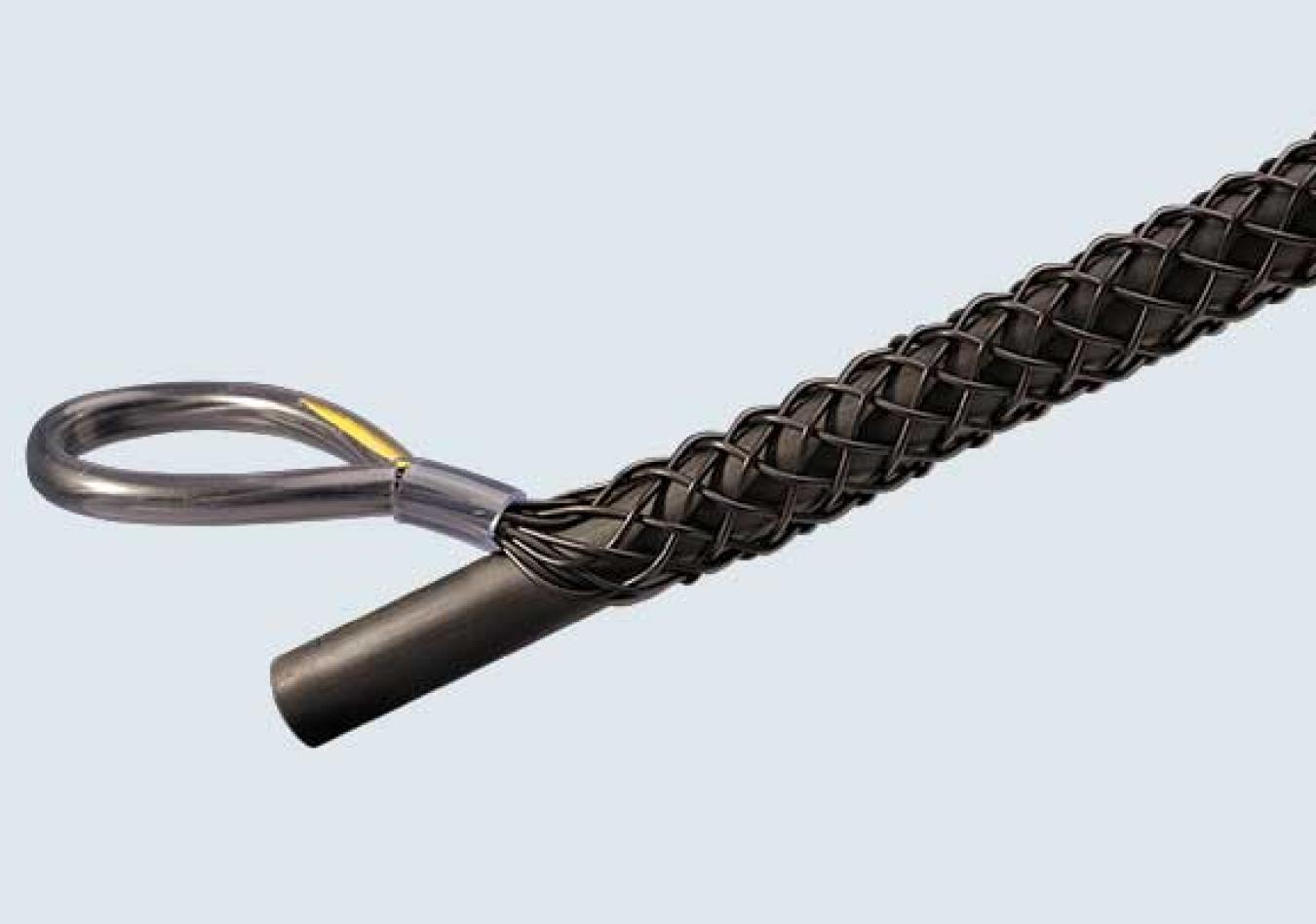

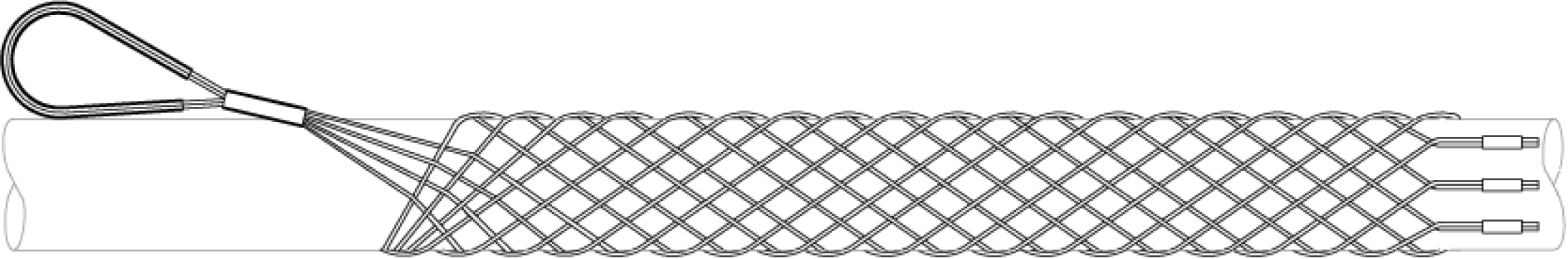

NO Type

Ideal for fibre optic, borehole cable installation, offshore or for a multitude of uses in industrial and electric cable applications; dramatically improved weight to break ratio. Slingco’s non-metallic pulling grips are made of a high-strength, non-metallic aramid fibre, with UV protective coating; they are suitable for pulling both single cable and cable bundles. These woven mesh grips offer a non-metallic alternative to steel. Non-metallic material is easy to work with even without gloves.

Warning

Cancer and Reproductive Harm www.P65Warnings.ca.gov

Contact Slingco

Features

Continuous weave configuration
No fraying wires
Lighter and safer to handle
Longer Life

Single Offset Eye Single Weave Non-Metallic Grip

Metric — Single Offset Eye Single Weave Non-Metallic Grip
Slingco Part No.	Range (mm)	Lattice Length (mm)	Approx. Break Load (kg)
ZCS2810	10 - 20	535	1,115
ZCS2811	20 - 30	535	1,620
ZCS2921	25 - 38	584	1,620
ZCS2812	30 - 40	635	2,230
ZCS2813	40 - 50	535	2,640

Single Offset Eye Double Weave Non-Metallic Grip

Metric — Single Offset Eye Double Weave Non-Metallic Grip
Slingco Part No.	Range (mm)	Lattice Length (mm)	Approx. Break Load (kg)
ZCS09342	13 - 25	990	3,671
ZCS2814	30 - 38	864	4,470
ZCS2815	38 - 50	635	5,390
ZCS2816	50 - 65	635	7,210
ZCS2817	65 - 76	667	7,210
ZCS2818	76 - 102	864	7,210

Single Offset Eye Extended Eye 12" Non-Metallic Grip

Metric — Single Offset Eye Extended Eye 12" Non-Metallic Grip
Slingco Part No.	Range (mm)	Lattice Length (mm)	Approx. Break Load (kg)
ZCS7053	13 - 16	610	363
ZCS7054	16 - 19	610	454
ZCS7055	19 - 25	610	544
ZCS7056	25 - 32	610	544

SINGLE OFFSET EYE LACE UP NON-METALLIC GRIP

Metric — SINGLE OFFSET EYE LACE UP NON-METALLIC GRIP
Slingco Part No.	Range (mm)	Lattice Length (mm)	Approx. Break Load (kg)
ZCS09323	65 - 76	1,499	5,896
ZCS10476	76 - 102	762	2,268

Double Offset Eye Non-Metallic Grip

Metric — Double Offset Eye Non-Metallic Grip
Slingco Part No.	Range (mm)	Lattice Length (mm)	Approx. Break Load (kg)
ZCS8176	65 - 76	991	3,629
ZCS09959	65 - 76	914	4,082
ZCS6823	76 - 102	838	4,082

A note about dimensions and tolerances

Single Offset Eye Single Weave Non-Metallic Grip

Imperial — Single Offset Eye Single Weave Non-Metallic Grip
Slingco Part No.	Range (in)	Lattice Length (in)	Approx. Break Load (lb)
ZCS2810	0.38 - 0.75	21	2,460
ZCS2811	0.75 - 1.25	21	3,580
ZCS2921	1.00 - 1.50	23	3,580
ZCS2812	1.25 - 1.50	25	4,920
ZCS2813	1.50 - 2.00	21	5,820

Single Offset Eye Double Weave Non-Metallic Grip

Imperial — Single Offset Eye Double Weave Non-Metallic Grip
Slingco Part No.	Range (in)	Lattice Length (in)	Approx. Break Load (lb)
ZCS09342	0.5 - 1.00	39	8,093
ZCS2814	1.25 - 1.50	34	9,860
ZCS2815	1.50 - 2.00	25	11,880
ZCS2816	2.00 - 2.50	25	15,900
ZCS2817	2.50 - 3.00	26	15,900
ZCS2818	3.00 - 4.00	34	15,900
