C-Clamps

Slingco’s grounding clamps meet ASTM F855 and have a maximum line range of up to 2” (50.8mm) which allows them to be used in a wide variety of grounding applications.

Aluminium clamps
Slingco’s aluminium grounding clamps have a location for a grounding stud which allows for a wide variety of grounding applications. The Slingco aluminium clamps come with serrated and a smooth jaw offering.

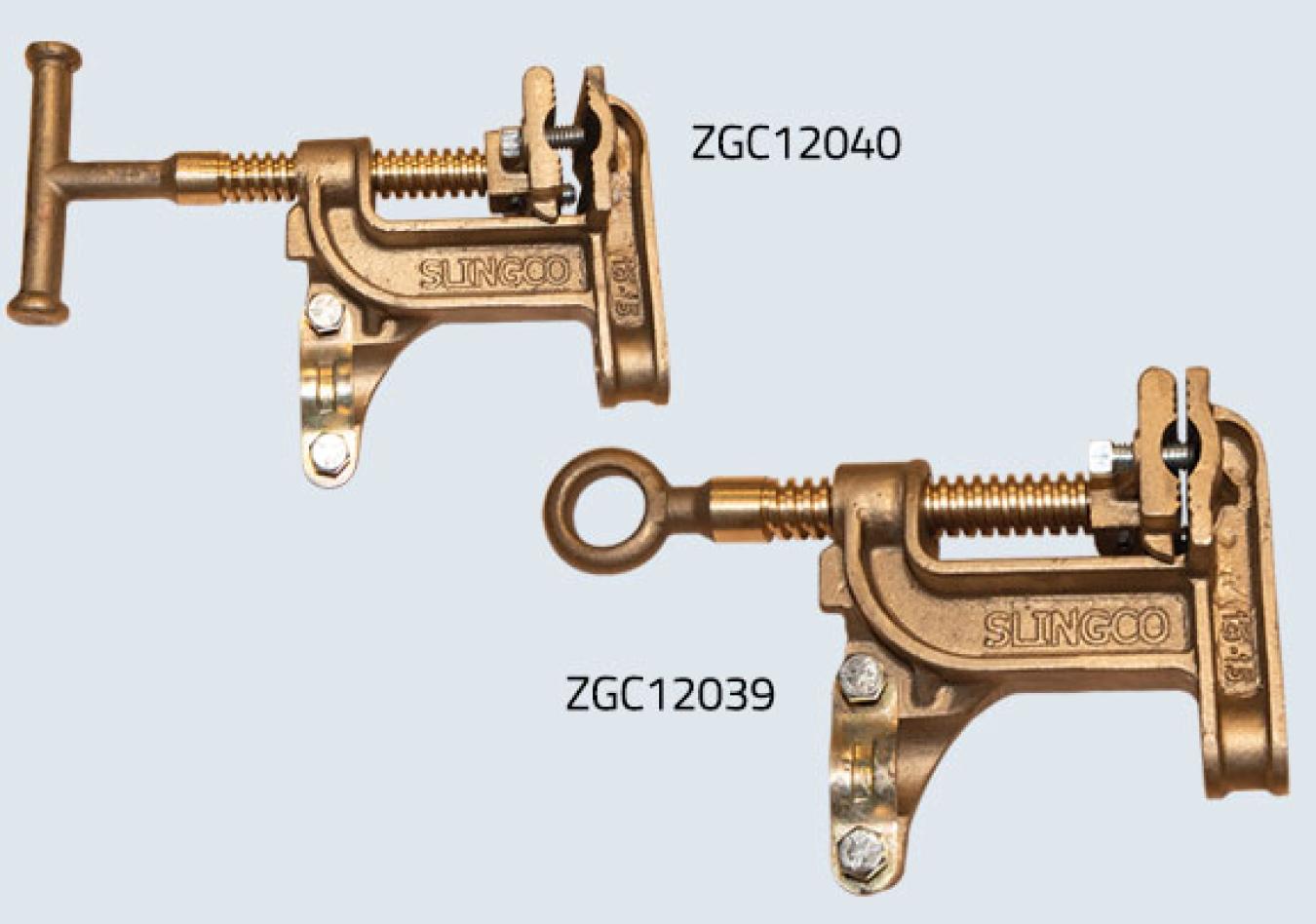

Bronze clamps
Slingco’s bronze grounding clamps have set screws in the moveable jaw which allows the user to adjust and make sure there is a secure connection between the clamp and cable. The flat face clamps come with a serrated jaw and are available with a T-handle or Eye Bolt.

Warning

Cancer and Reproductive Harm www.P65Warnings.ca.gov

Contact Slingco

Features

Meets ASTM F855 specification
Line range up to 2” (50.8 mm)
Adjustable to ensure secure connection between clamp and cable

Metric

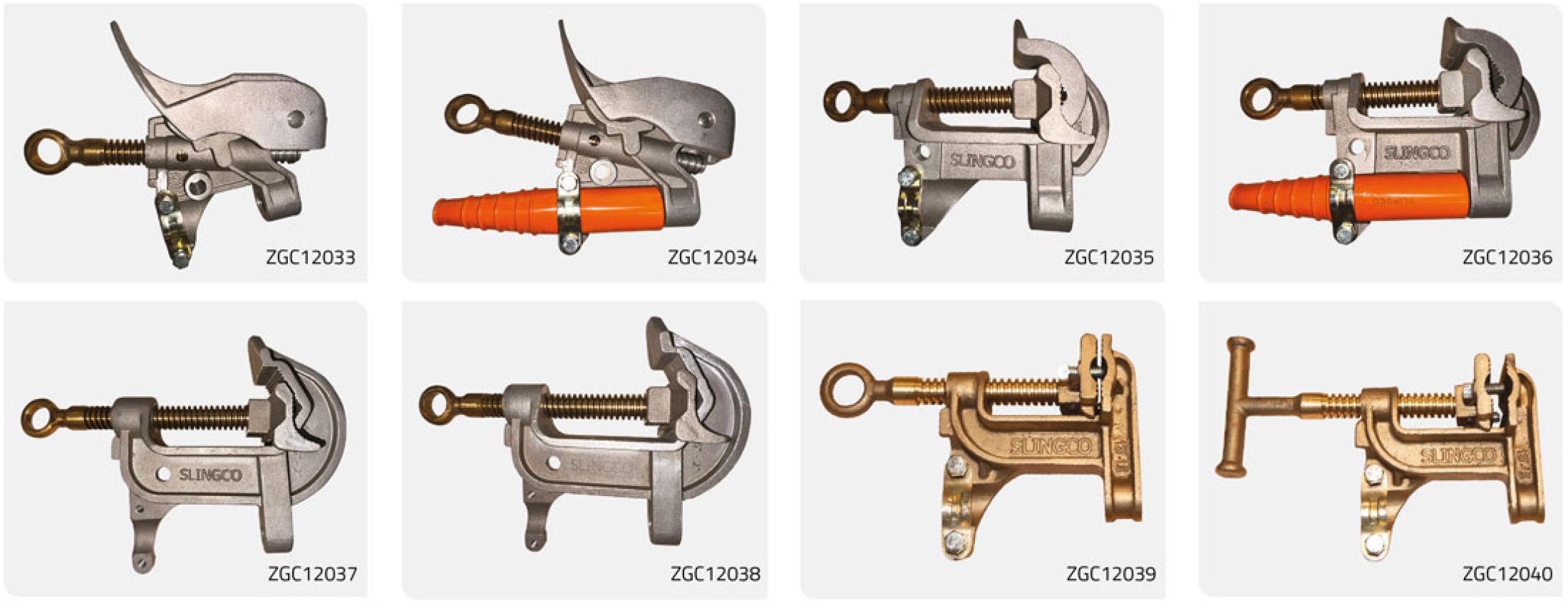

Slingco Part. No.	Description	Clamp Material	Eye Type	Class/ASTM Grade	Line Range (mm)	Weight (kg)
ZGC12033	Duckbill Clamp w/o Strain Relief	Aluminum	Eye Bolt	Class B/Grade 5H	4.06-42.16	0.84
ZGC12034	Duckbill Clamp w/ Strain Relief	Aluminum	Eye Bolt	Class B/Grade 5H	4.06-42.16	0.90
ZGC12035	1.5" (38 mm) C-Clamp w/o Strain Relief	Aluminum	Eye Bolt	Class B/Grade 5	4.06-38.10	0.84
ZGC12036	1.5” (38 mm) C-Clamp w/ Strain Relief	Aluminum	Eye Bolt	Class B/Grade 5	4.06-38.10	0.90
ZGC12037	2” (51 mm) C-Clamp w/ Serrated Jaw	Aluminum	Eye Bolt	Class B/Grade 5H	4.06-50.80	1.02
ZGC12038	2” (51 mm) C-Clamp w/ Smooth Jaw	Aluminum	Eye Bolt	Class A/Grade 5H	4.06-50.80	1.00
ZGC12039	1.5" (38 mm) Flat Face Grounding	Bronze	Eye Bolt	Class B/Grade 5	3.18-38.10	0.90
ZGC12040	1.5" (38 mm) Flat Face Grounding	Bronze	T Handle	Class B/Grade 5	3.18-38.10	0.98

A note about dimensions and tolerances

Imperial
Slingco Part. No.	Description	Clamp Material	Eye Type	Class/ASTM Grade	Line Range (in)	Weight (lb)
ZGC12033	Duckbill Clamp w/o Strain Relief	Aluminum	Eye Bolt	Class B/Grade 5H	0.16-1.66	1.85
ZGC12034	Duckbill Clamp w/ Strain Relief	Aluminum	Eye Bolt	Class B/Grade 5H	0.16-1.66	1.98
ZGC12035	1.5" (38 mm) C-Clamp w/o Strain Relief	Aluminum	Eye Bolt	Class B/Grade 5	0.16-1.50	1.85
ZGC12036	1.5” (38 mm) C-Clamp w/ Strain Relief	Aluminum	Eye Bolt	Class B/Grade 5	0.16-1.50	1.98
ZGC12037	2” (51 mm) C-Clamp w/ Serrated Jaw	Aluminum	Eye Bolt	Class B/Grade 5H	0.16-2.00	2.25
ZGC12038	2” (51 mm) C-Clamp w/ Smooth Jaw	Aluminum	Eye Bolt	Class A/Grade 5H	0.16-2.00	2.20
ZGC12039	1.5" (38 mm) Flat Face Grounding	Bronze	Eye Bolt	Class B/Grade 5	0.125-1.50	1.98
ZGC12040	1.5" (38 mm) Flat Face Grounding	Bronze	T Handle	Class B/Grade 5	0.125-1.50	2.16
