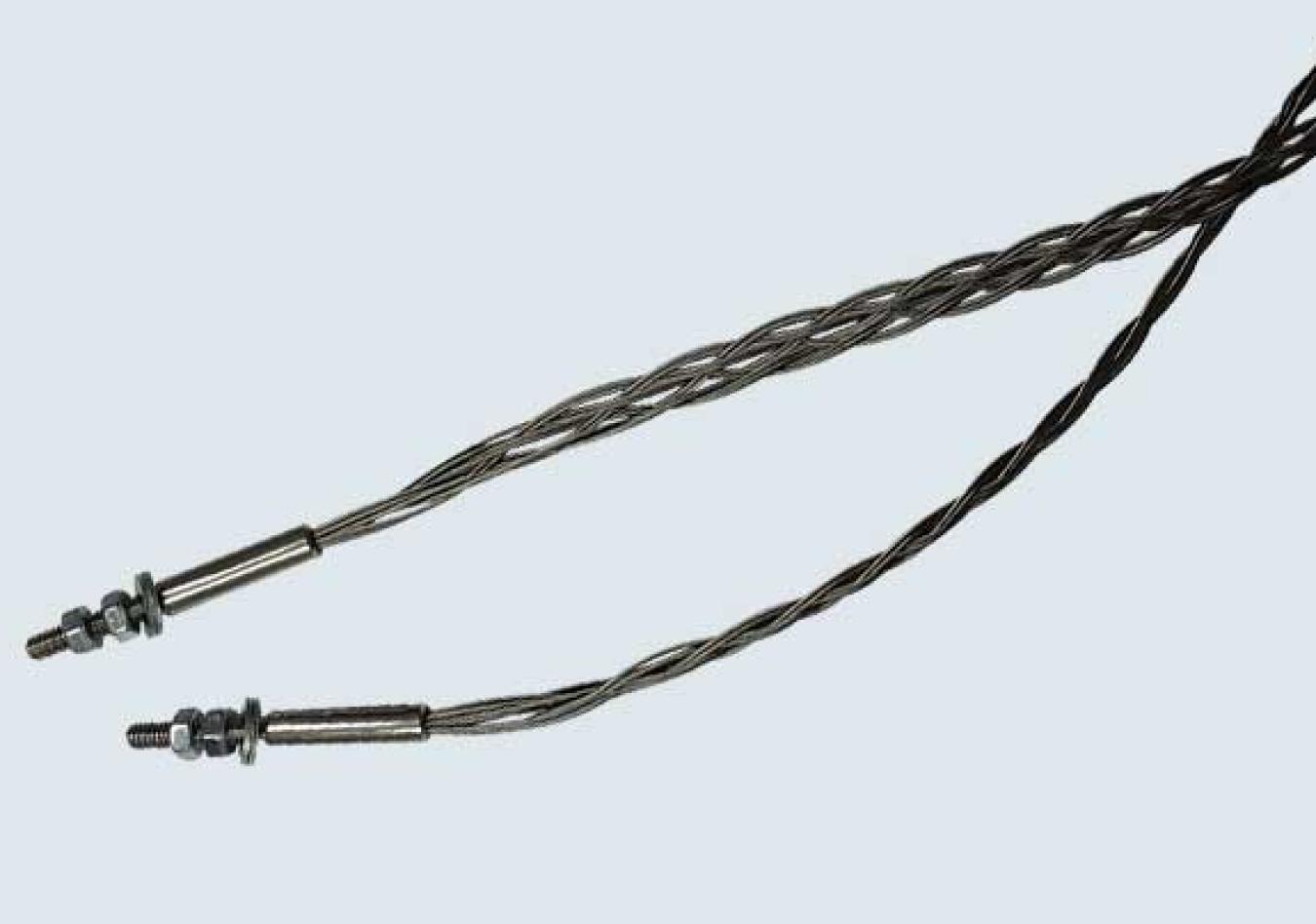

Features
- Prevents whipping from detached pressure hoses
- Threaded bolt fitting
- Made from 316 Stainless steel
Metric

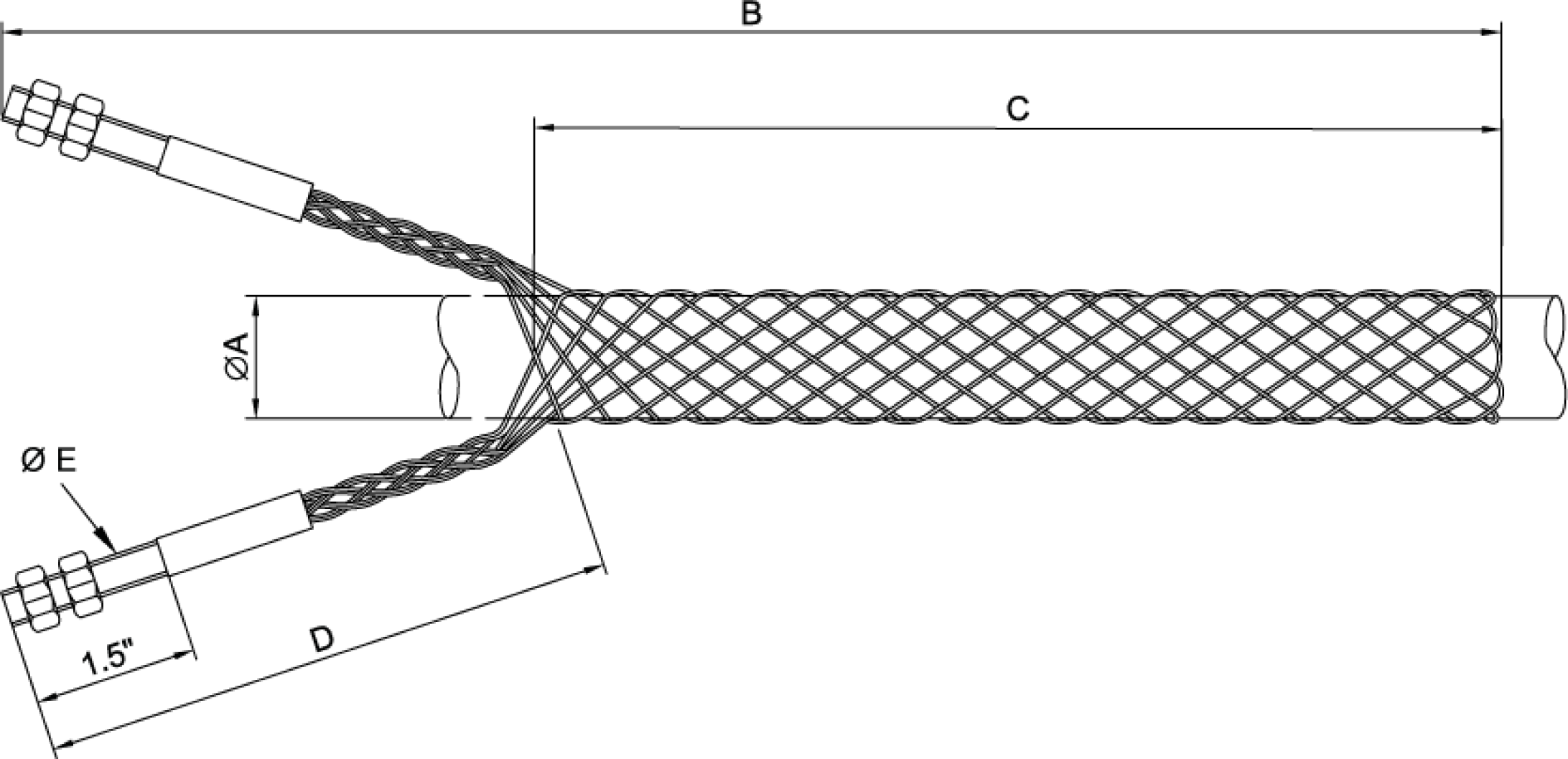

| Slingco Part No. | Approx. Break Load (kg) | B (mm) | C (mm) | D (mm) | Ø A mean (mm) | Ø E (mm) | Range (mm) |
|---|---|---|---|---|---|---|---|
| ZCS5422 | 1,161 | 1,041 | 737 | 305 | 9.5 | 18 TPI | 6 - 13 |
| ZCS5423 | 1,562 | 991 | 686 | 305 | 16 | 18 TPI | 13 - 19 |
| ZCS5424 | 5,357 | 1,092 | 787 | 305 | 32 | 12 TPI | 25 - 38 |
Imperial
| Slingco Part No. | Approx. Break Load (lb) | B (in) | C (in) | D (in) | Ø A mean (in) | Ø E (in) | Range (in) |
|---|---|---|---|---|---|---|---|
| ZCS5422 | 2,600 | 41.0 | 29.0 | 12.0 | 0.37 | 5/16 BSW | 0.25 - 0.5 |
| ZCS5423 | 3,500 | 39.0 | 27.0 | 12.0 | 0.62 | 5/16 BSW | 0.5 - 0.75 |
| ZCS5424 | 12,000 | 43.0 | 31.0 | 12.0 | 1.25 | 1/2 BSW | 1.0 - 1.5 |
