Pole Pullers

Slingco’s pole puller is a must have to comply with today’s safe working practices, reducing the potential for boom damage and greatly reducing the potential of personal injury. The pole puller is easily assembled and disassembled.

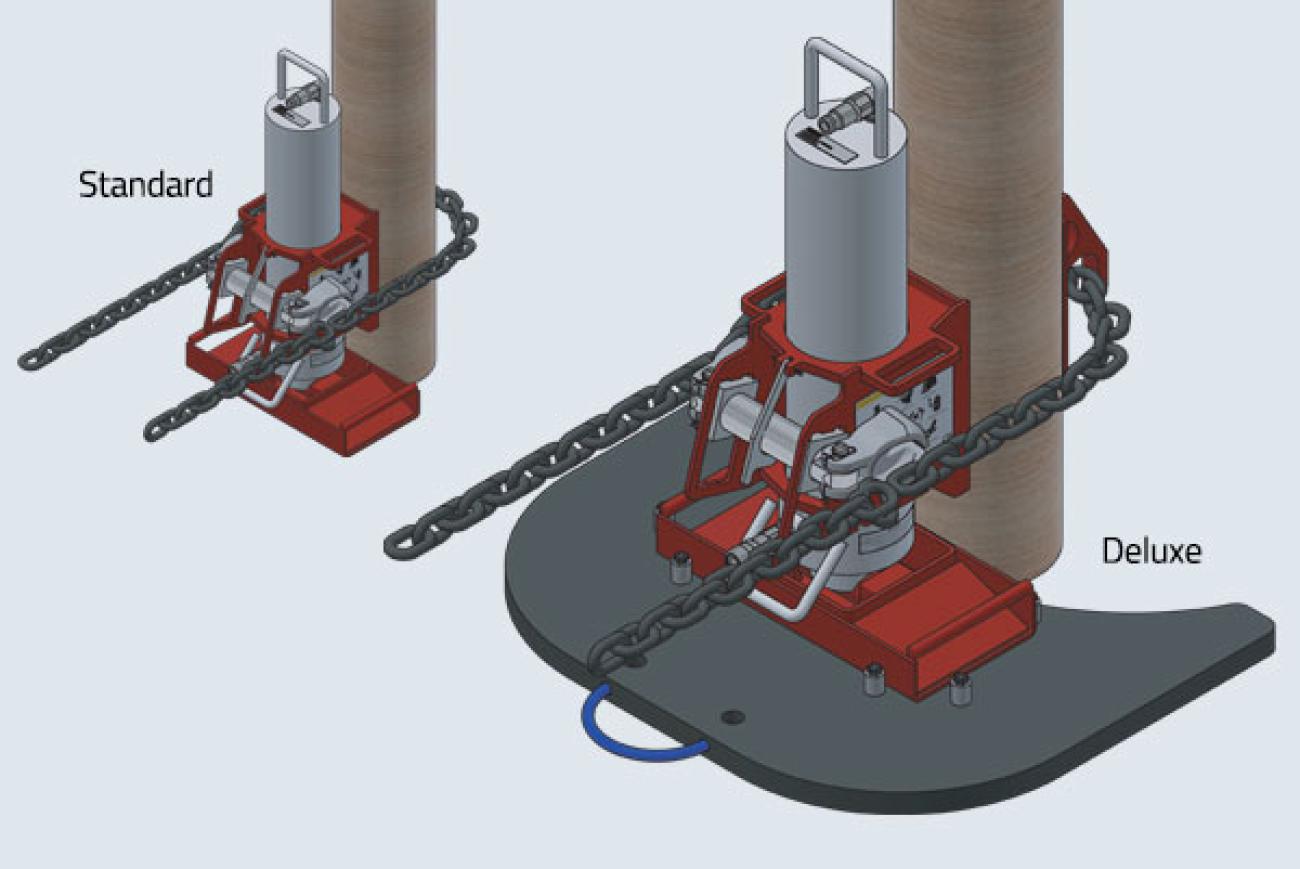

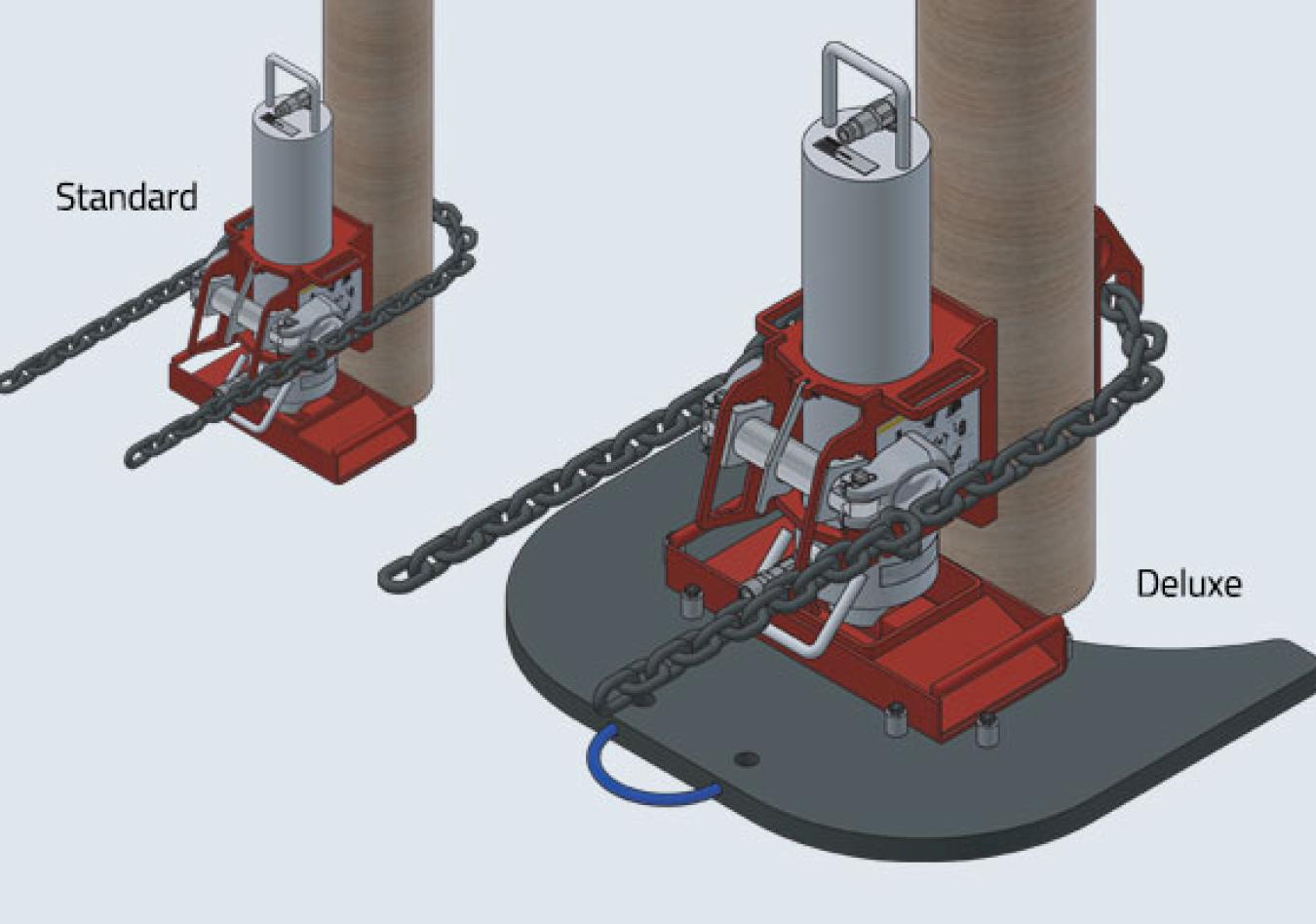

The standard pole puller system is composed of four pieces and the deluxe system six pieces.

These configurations make the Slingco pole puller easy to handle and lighter weight than typical units on the market.

The Slingco Deluxe Pole Puller system includes the pole puller pad and back plate weldment. The pole puller pad has studs which keep the base plate in the optimum position when pulling poles. The back plate weldment has angled teeth to increase hold on the pole during extraction.

Slingco’s pole puller offers a low point of attachment making it easy to remove even broken or cut poles.

Warning

Cancer and Reproductive Harm www.P65Warnings.ca.gov

Contact Slingco

Features

Low point of attachment
22,734 kg lift at max pressure
Deluxe System complete with back plate weldment & pad

Combined
Slingco Part No.	Description	Max Operating Pressure (PSI)	Recommended Flow Rate (GPM)	Lift at Max Pressure (lb)	Lift at Max Pressure (kg)	Total Weight (lb)	Total Weight (kg)
TPE09386	DELUXE Pole Puller System consists of: hydraulic cylinder*, chain, base weldment, swivel assembly PLUS back plate weldment, and pole puller pad.	2,800	4 - 8	50,120	22,734	157	71.2
TPE10551	STANDARD Pole Puller System consists of: hydraulic cylinder*, chain, base weldment, swivel assembly.	2,800	4 - 8	50,120	22,734	128	58
TPE09378	Pole Puller Pad					23	10.43
TPE09367	Back Plate Weldment					6	2.72
